ST100 ProDual-Hole Spark Plug Tester with Black Viewing Plate

Compare two compatible spark plugs under matching settings, with adjustable firing frequency, power and dual HV indicators. A black viewing plate improves contrast. Check insulator size, len…

Product overview

The ST100 Pro applies ignition signals to compatible removed gasoline-engine spark plugs for bench observation and comparison. Two sockets allow side-by-side checks, with a knob changing the simulated firing rate. It does not reproduce a pressurized combustion chamber or automatically determine remaining plug life or a vehicle fault.

Key capabilities

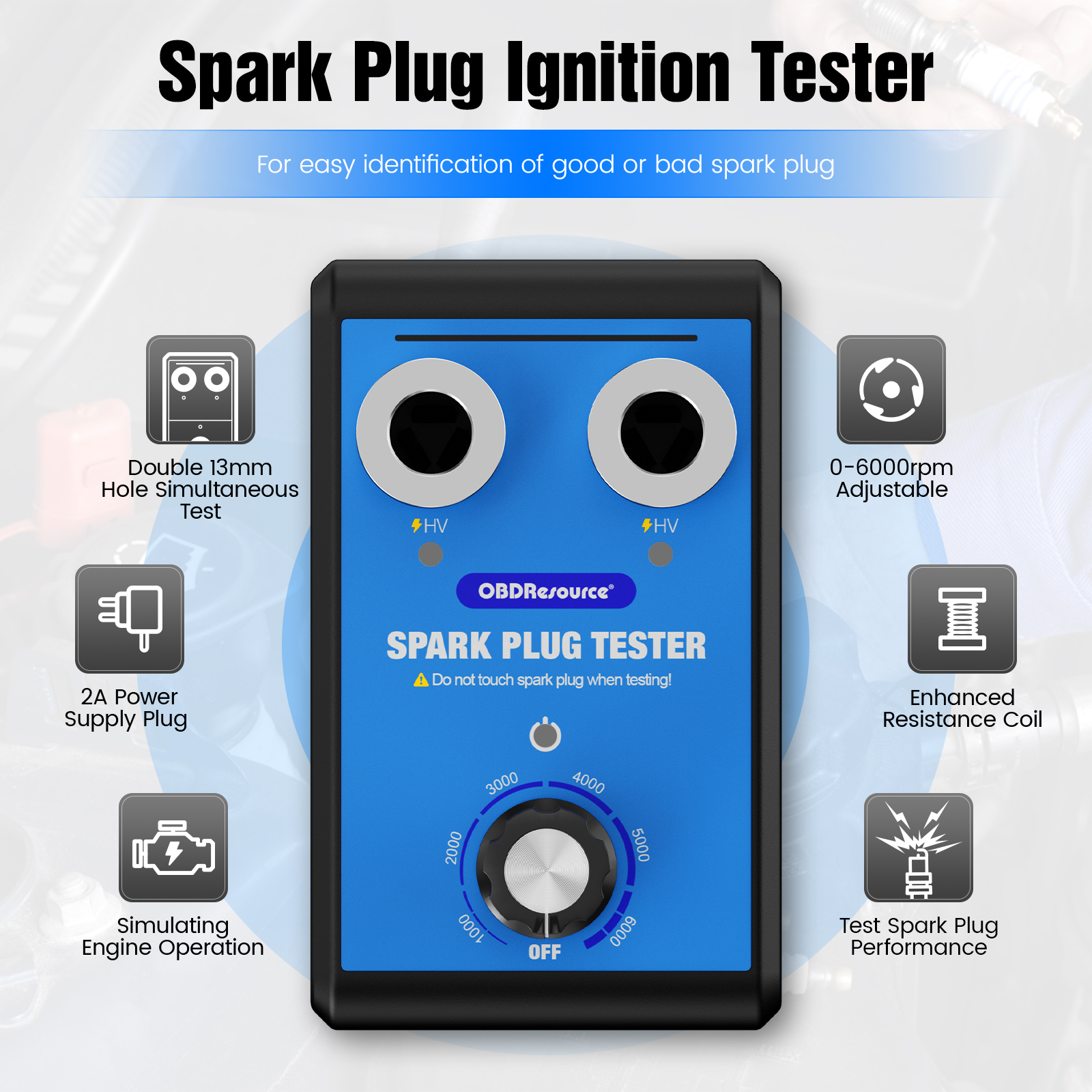

Dual sockets for consistent comparison

Compare two compatible plugs, preferably the same model with comparable gaps and firing settings. Observe continuity/intermittent behavior; brightness alone does not describe complete performance.

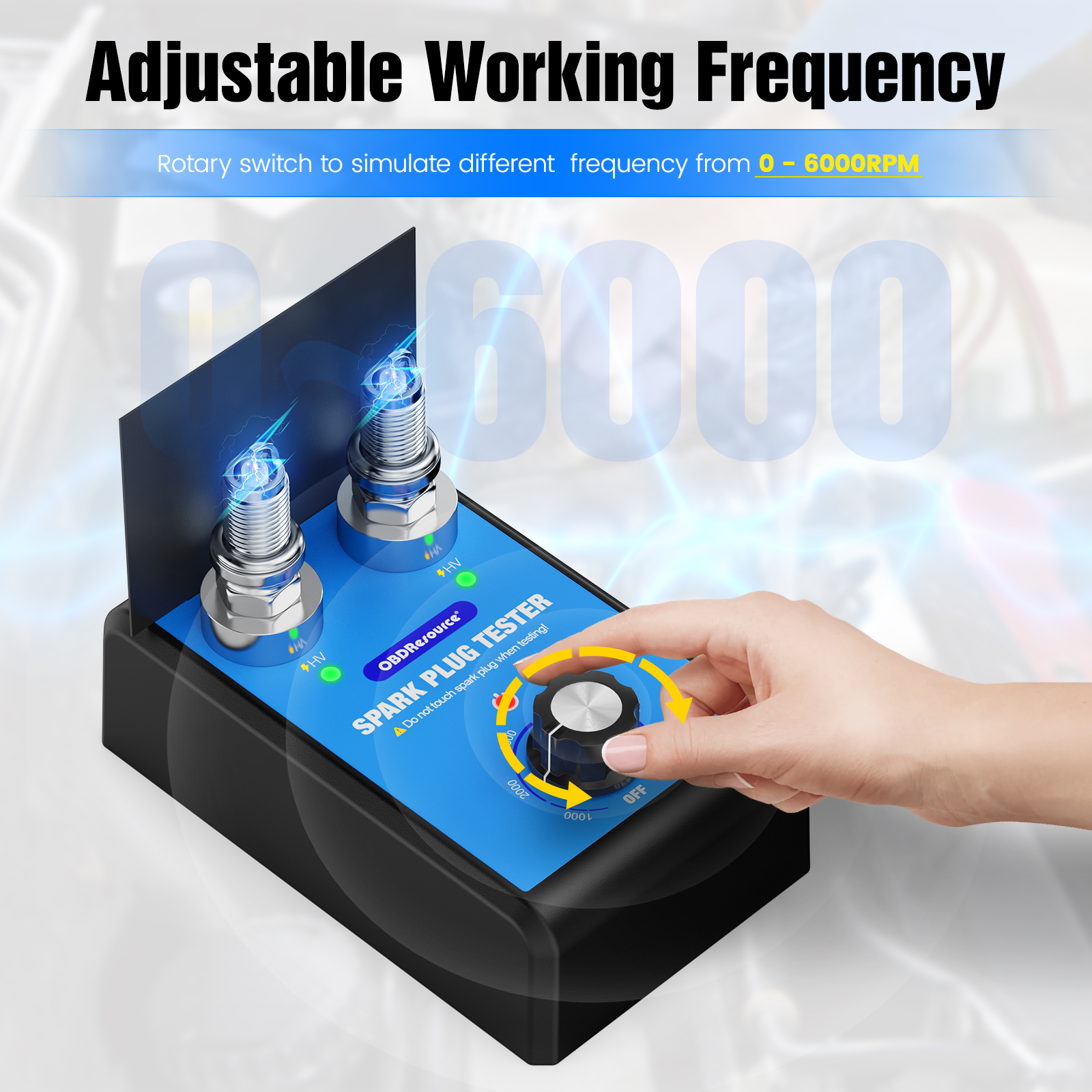

Knob-adjustable simulated firing rate

The quick guide lists a 1000–6000 RPM-equivalent working range; OFF is the off position. RPM is a simulation scale, not engine-speed measurement, and a higher setting does not itself prove a better plug.

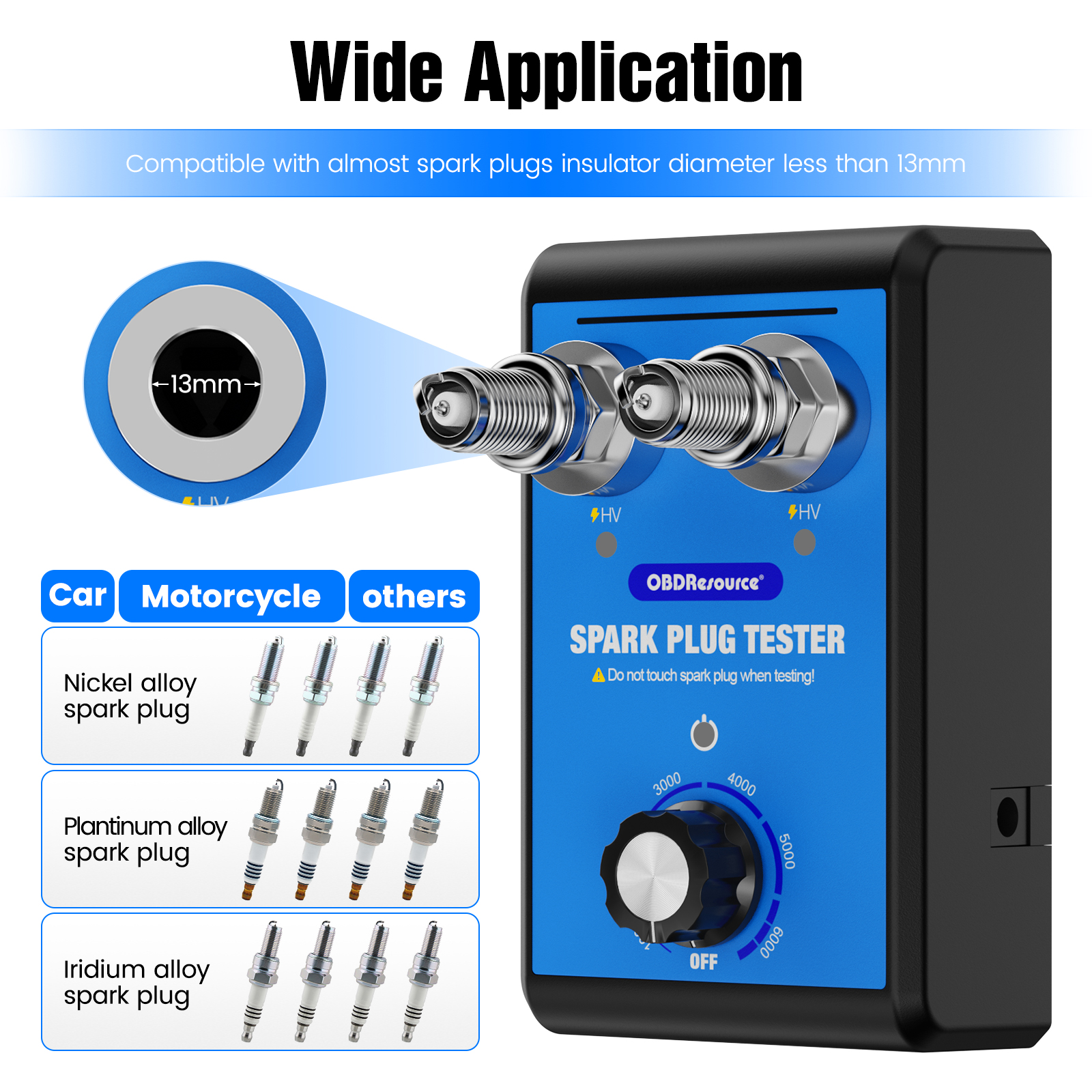

Size and contact compatibility

The 13 mm socket requires suitable insulator diameter, length and contact with the negative metal support. Use a shim only when required to reach that support, not for every plug. Verify unusual short plugs before use.

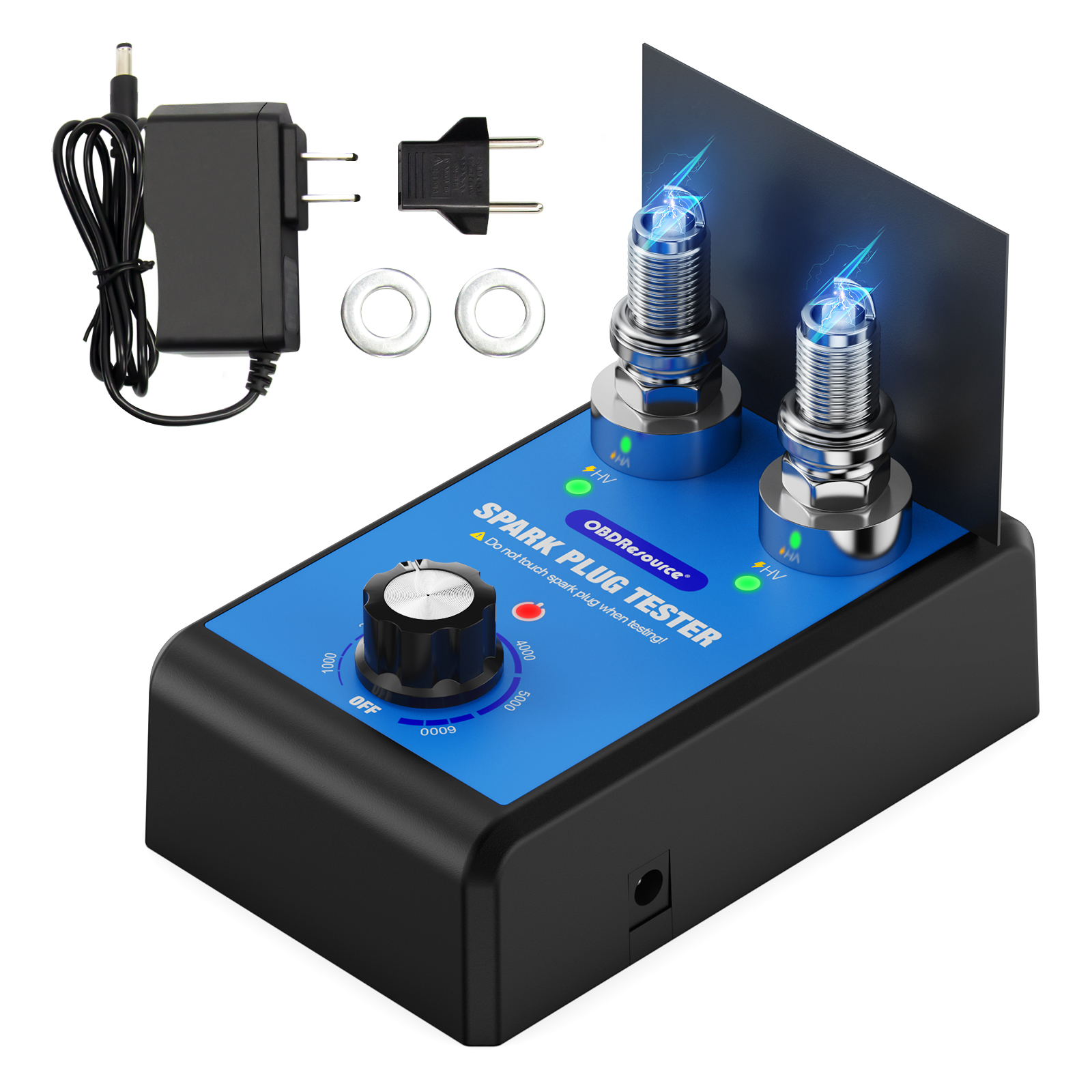

Black viewing plate

A black background improves contrast for viewing both spark gaps. It aids visibility without changing the electrical test conditions.

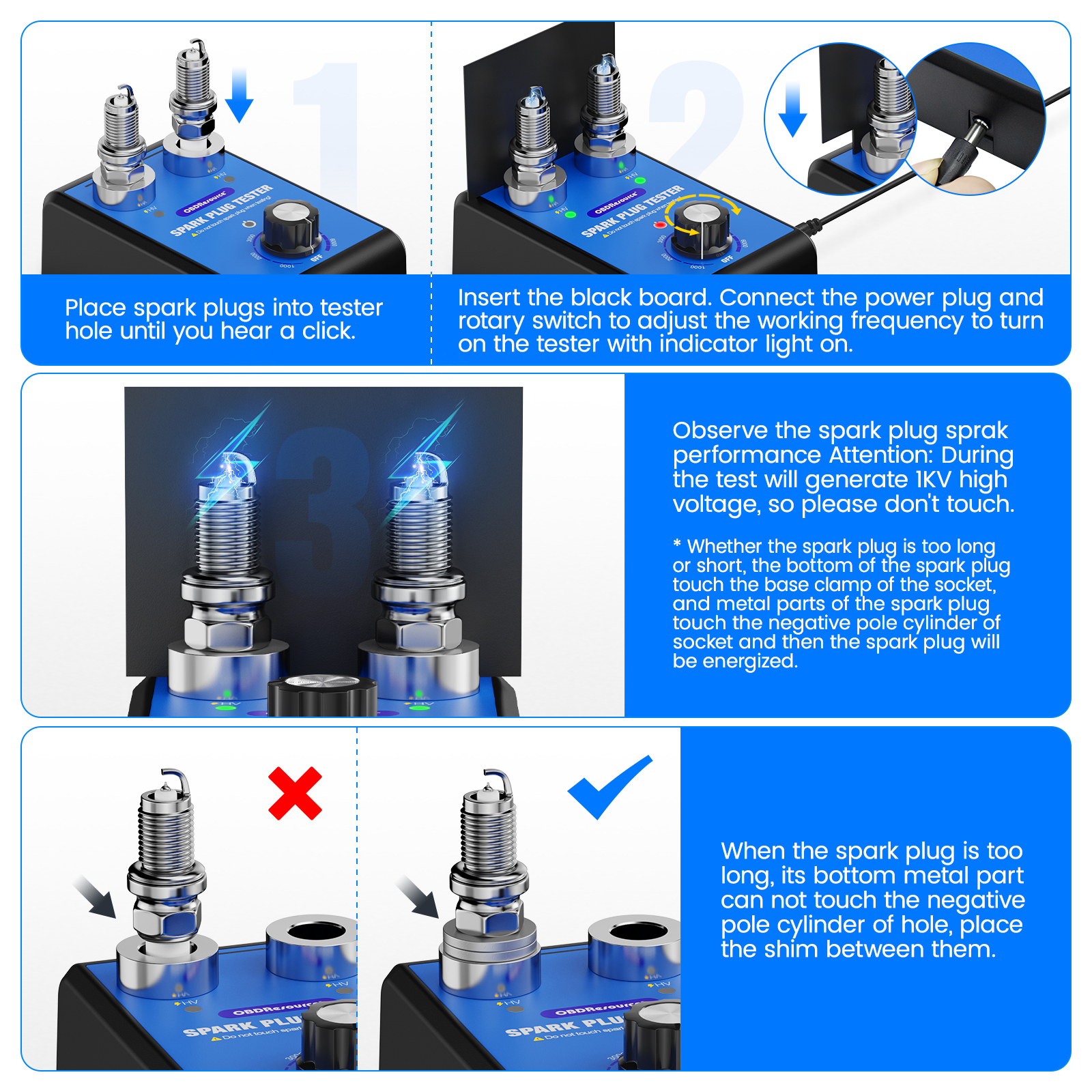

Suggested workflow

  1. Install with power disconnected — Fit the viewing plate first, then insert compatible plugs with power disconnected. Check metal contact and use a shim only if needed.

  2. Connect the adapter and test — Use the matching adapter, turn on and adjust the rate gradually. Do not touch plugs, metal contacts or high-voltage output during testing.

  3. Switch off and disconnect before removal — Set OFF and disconnect power before removing plugs. Assess suitability against vehicle specifications and further testing where required.

Frequently asked questions

Does 13 mm refer to plug thread diameter?

It describes the test socket/insulator fit, not thread specification. Verify length, contact location and instructions rather than deciding only from an M14 or M12 thread.

Does a bench spark guarantee correct operation in the engine?

No. Cylinder pressure, temperature, mixture, coil and load affect operation. This is an observation/comparison test, not a replacement for real-condition or vehicle diagnosis.

Can mains connect directly to the unit or plugs be changed live?

No. Use the matching external adapter within its marked input rating. Switch off and disconnect before changing plugs or fitting shims.

Product design

ST100 Pro Product design

Documentation and support

View product documentation and contact technical support

Key features

Compare two compatible spark plugs under matching settings, with adjustable firing frequency, power and dual HV indicators. A black viewing plate improves contrast. Check insulator size, length and metal contact.

Applications

ST100 Pro dual spark plug tester with 13 mm sockets, adjustable firing rate and dual HV indicators. Black viewing plate. See 1000–6000 RPM-equivalent guidance, fit, power and FAQ.

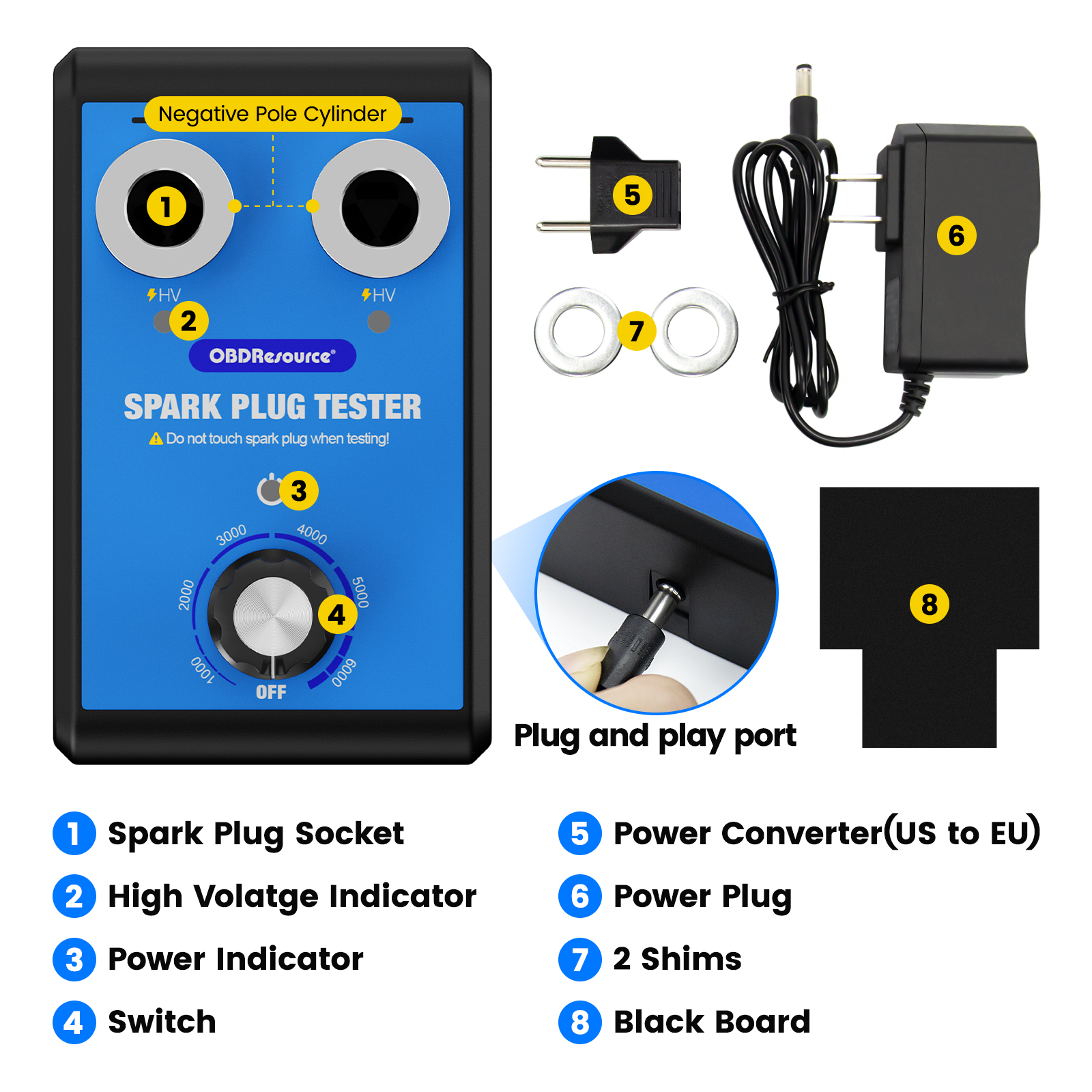

Technical specifications

ItemSpecification or function
ModelST100 Pro
PurposeBench spark observation/comparison on removed plugs
Sockets2, for simultaneous comparison
Socket fit13 mm; match insulator, length and negative contact
Firing-rate scaleQuick guide: 1000–6000 RPM-equivalent operation; OFF position
PowerExternal adapter per supplied rating label
Adapter inputCatalog AC 100–240 V; confirm supplied adapter
Status indicationPower plus two HV indicators
Shim useOnly as instructed for insufficient negative metal-support contact
DimensionsCatalog body approx. 130 × 80 × 40 mm
WeightCatalog approx. 380 g
Viewing accessoryBlack viewing plate

Confirm fit and supply against the supplied version/manual. High voltage is generated: switch off and disconnect before handling. Bench sparking does not establish all under-pressure performance.
