Battery Analyzer

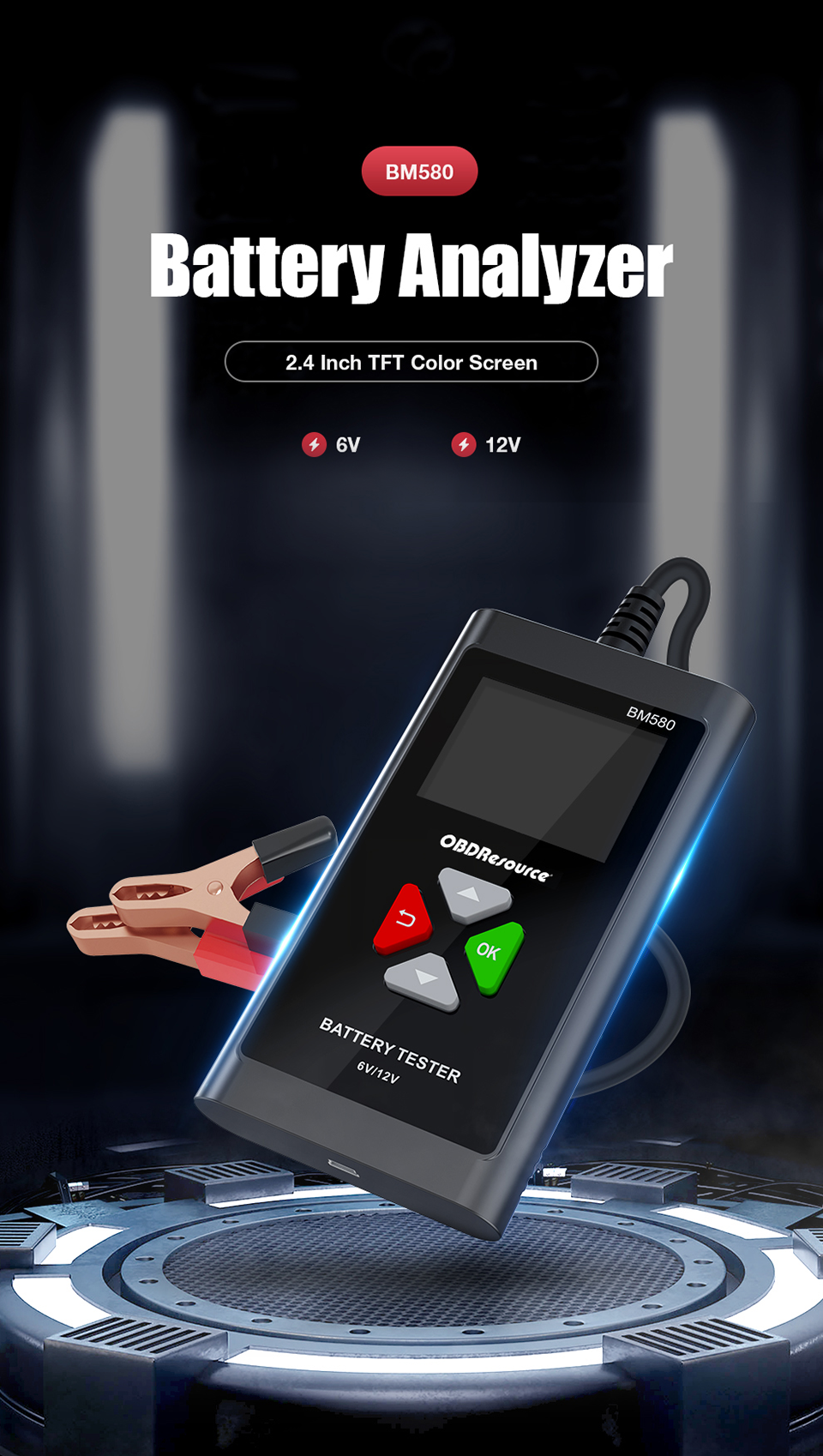

BM5802.4-inch 6V/12V Battery Analyzer with Non-Polarity Clamps

Analyze compatible 6/12 V lead-acid batteries with CCA, SOH, SOC, resistance and voltage results on a 2.4-inch backlit TFT color display. Suitable for in-vehicle or out-of-vehicle battery ch…

Product overview

The BM580 analyzes compatible 6/12 V lead-acid starting batteries through terminal connections, providing CCA, SOH, SOC, resistance and voltage information. Enter the battery’s correct rated value and maintain good clamp contact for comparable results. Analysis supports maintenance decisions; it does not directly measure remaining Ah capacity or predict exact service life.

Key capabilities

Multi-metric battery analysis

Review CCA, State of Health (SOH), State of Charge (SOC), resistance and voltage together. SOC and SOH are algorithmic estimates; do not base replacement solely on one percentage.

Test against the rated value

Supports Flooded, AGM flat-plate, AGM spiral, GEL and EFB lead-acid batteries. Match voltage and rating to the battery label and device menu. 100–2000 CCA is the CCA test range; do not mix rating standards.

Clear review and records

A 2.4-inch backlit TFT color display presents results. Record the entered rating, test conditions and results for later comparison.

System checks and data review

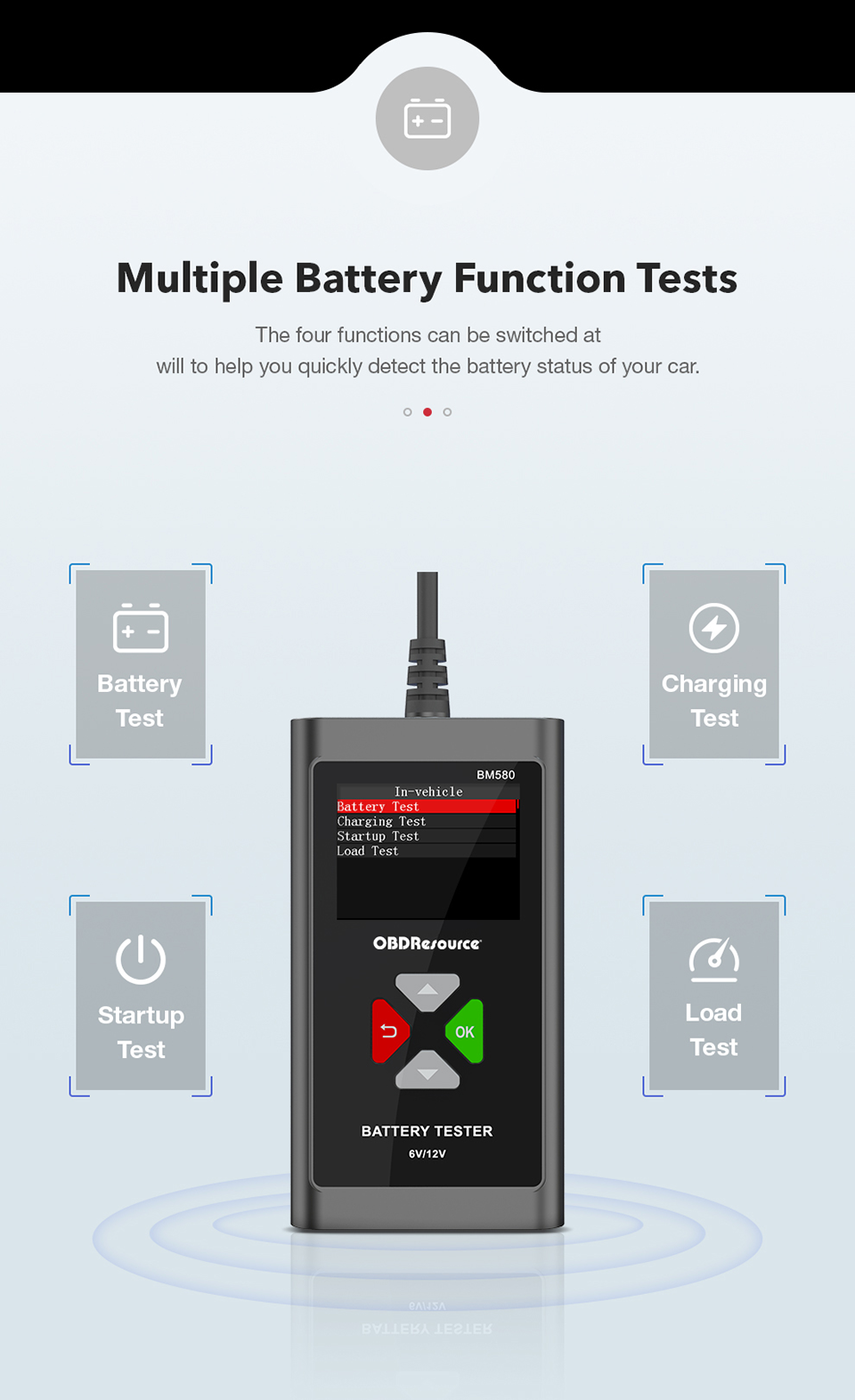

Supports cranking, charging and load checks, live voltage waveforms, waveform playback and battery-test records. Follow each procedure; battery-analysis voltage coverage does not establish universal system-test limits.

Two test modes

Quick testing uses an Ah-based estimate; accurate testing uses the battery label’s standard and rating. Prefer the actual nameplate rating when known.

Non-polarity connection and gauge view

Supports non-polarity clamp connection as specified for this model; keep clamps from touching. The Multimeter menu provides a battery/charging gauge view, not the full current, resistance and other functions of a general-purpose multimeter.

Suggested workflow

  1. Check the battery and conditions — Verify voltage, type and rating standard; prepare the battery and handle surface charge as instructed.

  2. Connect and enter the rating — Secure clean battery-terminal contact using the model’s non-polarity instructions. Select voltage and standard, then enter the nameplate rating.

  3. Interpret and recheck — Interpret voltage, SOH and SOC alongside symptoms. If undercharged, recharge and rest as instructed before retesting; retain service records.

Frequently asked questions

How do SOH, SOC and actual Ah capacity differ?

SOH estimates health and SOC estimates charge state. Neither directly measures actual Ah capacity, which requires controlled charge/discharge testing under the relevant standard.

Can it test lithium batteries or traction packs?

The listed application is lead-acid batteries within the stated voltage and type limits. Do not extend this to lithium, high-voltage traction packs or unlisted chemistries.

Why can results change on the same battery?

Clamp contact, corrosion, temperature, surface charge, vehicle loads and entered ratings affect results. Standardize conditions before comparing repeated tests.

Product design

BM580 Product design

Documentation and support

View product documentation and contact technical support

Key features

Analyze compatible 6/12 V lead-acid batteries with CCA, SOH, SOC, resistance and voltage results on a 2.4-inch backlit TFT color display. Suitable for in-vehicle or out-of-vehicle battery checks.

Applications

BM580 6/12 V battery analyzer with a 100–2000 CCA range, SOH, SOC, resistance and voltage results. View specifications, test steps and FAQ.

Technical specifications

ItemSpecification or function
ModelBM580
Nominal battery voltages6/12 V
Battery typesFlooded, AGM flat-plate, AGM spiral, GEL and EFB lead-acid batteries
CCA range100–2000 CCA
Analysis metricsCCA / SOH / SOC / resistance R / voltage V
Display2.4-inch backlit TFT color
Test connectionNon-polarity clamps; follow this model’s connection instructions
UseIn-vehicle / out-of-vehicle under manual conditions
Operating temperature−20°C to 60°C
Voltage waveformReal-time voltage graph
System checksCranking and charging; voltage limits and procedure per manual
Resolution320 × 240
Voltage measurement range5–20 V
Nominal battery capacity application6 V: 3–220 Ah; 12 V: 30–220 Ah (not actual capacity measurement)
Test methodFour-wire Kelvin connection
Rating standardsCCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB; select per menu
Test modesQuick test (Ah-based estimate) / accurate test (nameplate rating)
RecordsWaveform playback, battery-test records and up to 10 screenshots
UpdatesUSB file update using official files for this model
Protection and promptsReverse-connection, high-input-voltage and poor-contact safeguards/prompts
Gauge viewMultimeter menu: battery and charging-condition gauge

SOH, SOC and CCA analysis supports maintenance; it does not guarantee actual Ah capacity or remaining service life. Use good contact, correct ratings and proper test conditions.
