Protable VCI

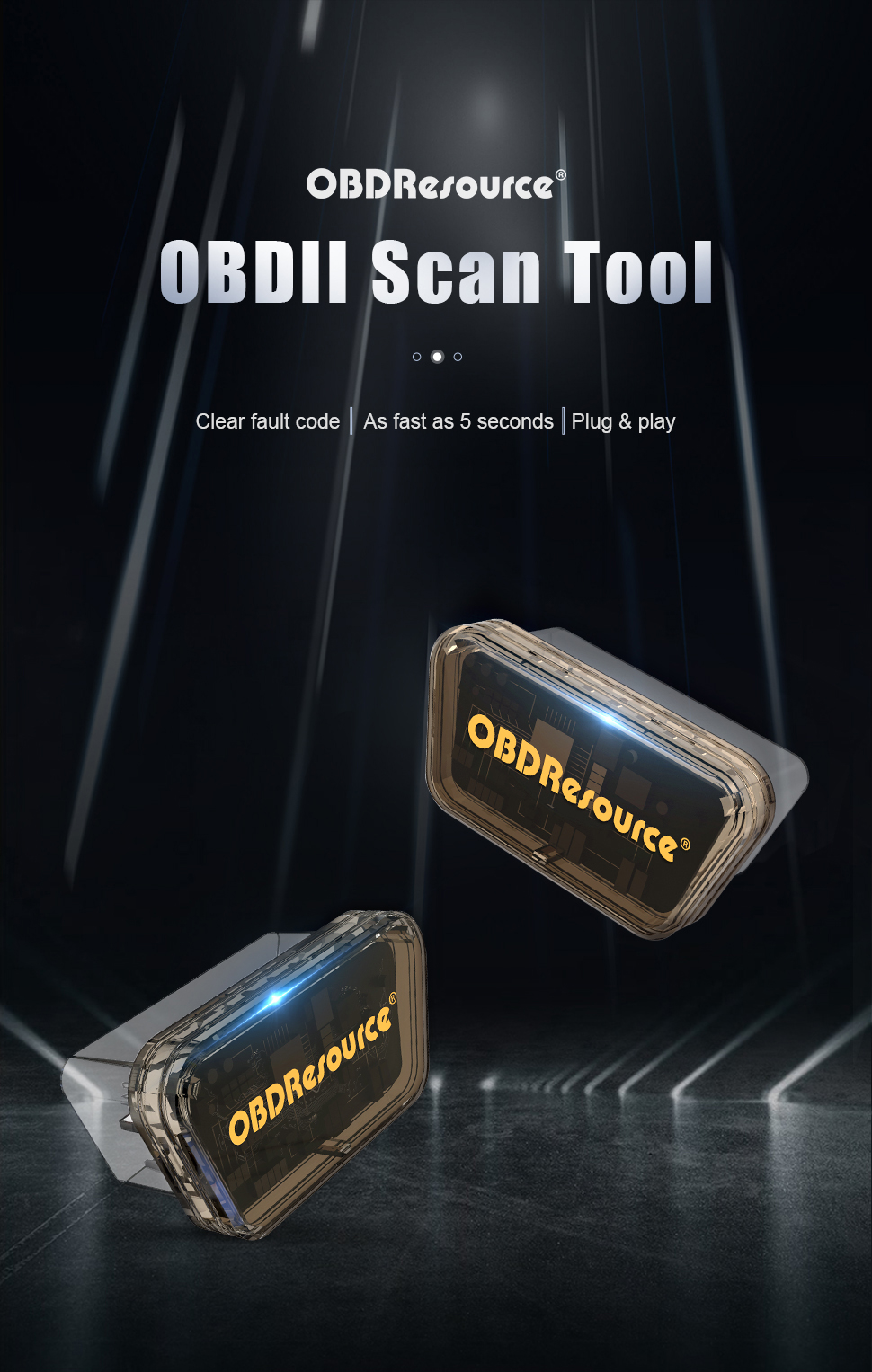

P04 Lite12V OBD2 Engine Code Eraser

Standalone emissions-related code clearing on compatible 12 V OBD2 vehicles without phone operation. Dual LEDs show communication/results in a 44.9×22.8×19.8 mm body.

Product overview

The P04 Lite automatically clears supported emissions-related engine codes on compatible 12 V OBD2 vehicles and reports communication/operation status through LEDs. It does not display DTC text, freeze frames or live data. Use a code-reading tool to preserve the required diagnostic information before using this eraser.

Key capabilities

Standalone automatic clearing

Performs clearing after connection under the vehicle/tool procedure, without a phone app. ECU and standard OBD2 support determine coverage; ABS, airbags and proprietary resets are not implied.

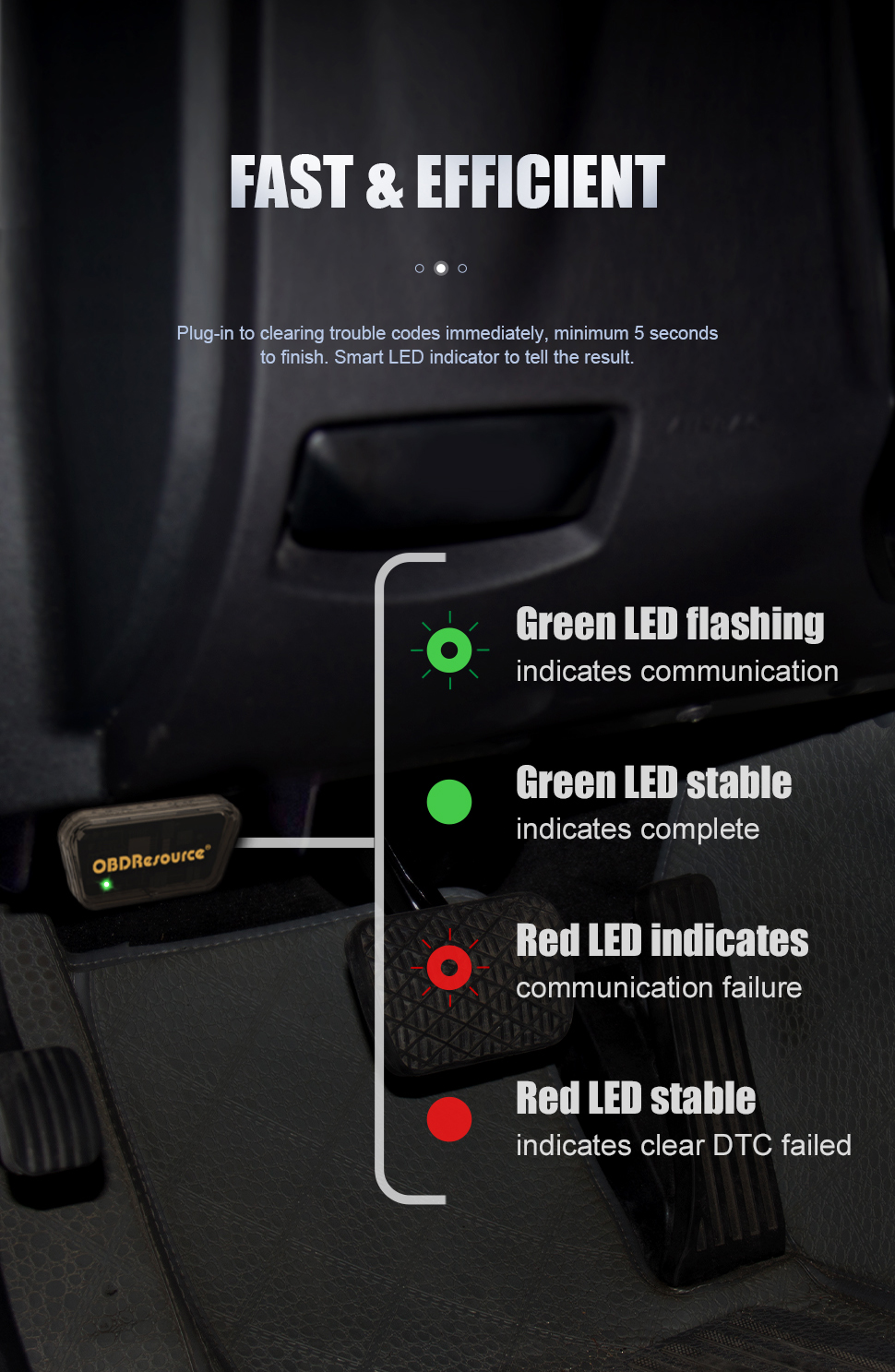

Dual LED status feedback

Flashing green means communication; steady green means completion. Flashing red means communication failed; steady red means clearing failed. Completion does not prove the underlying fault has been repaired.

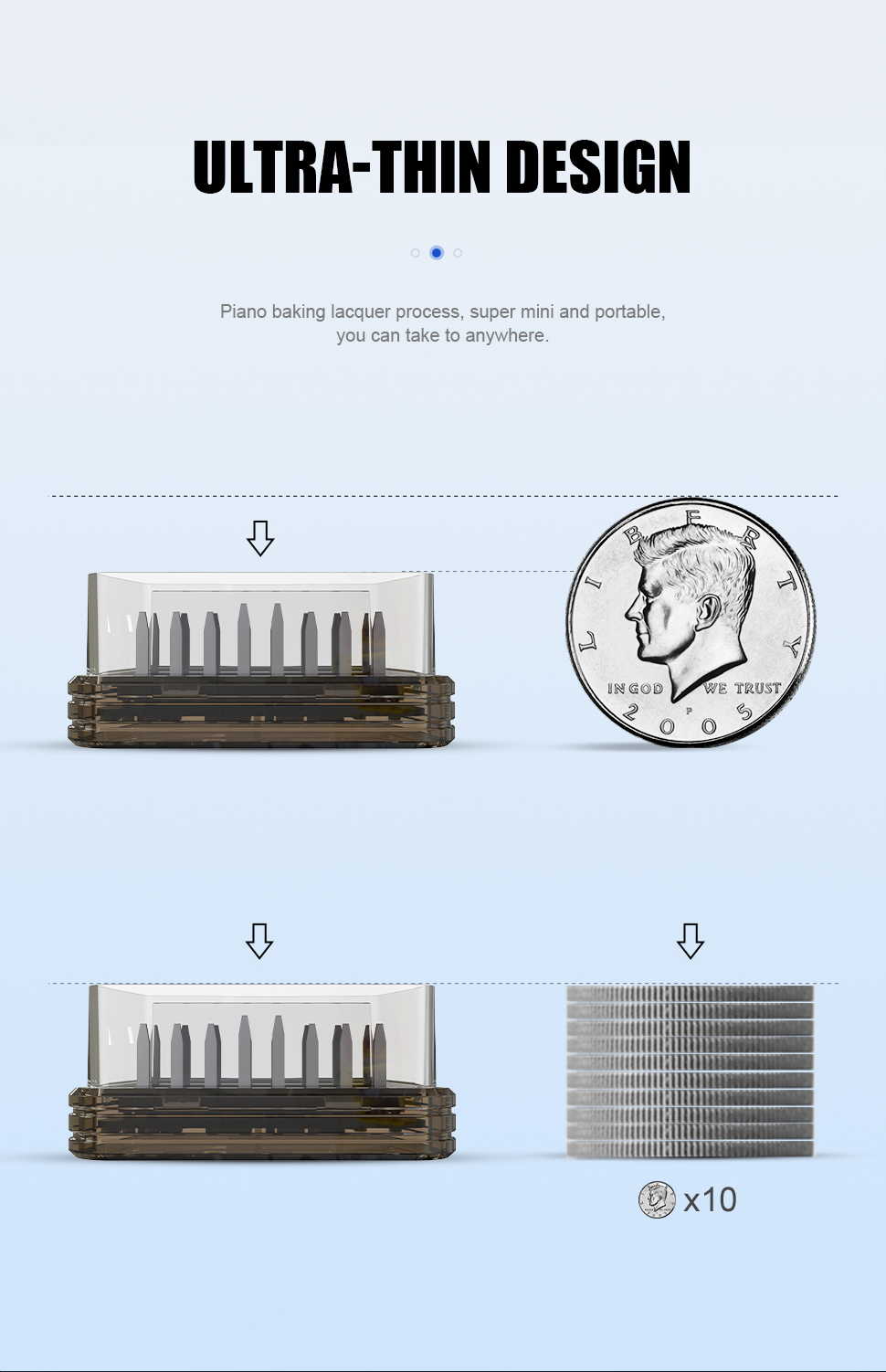

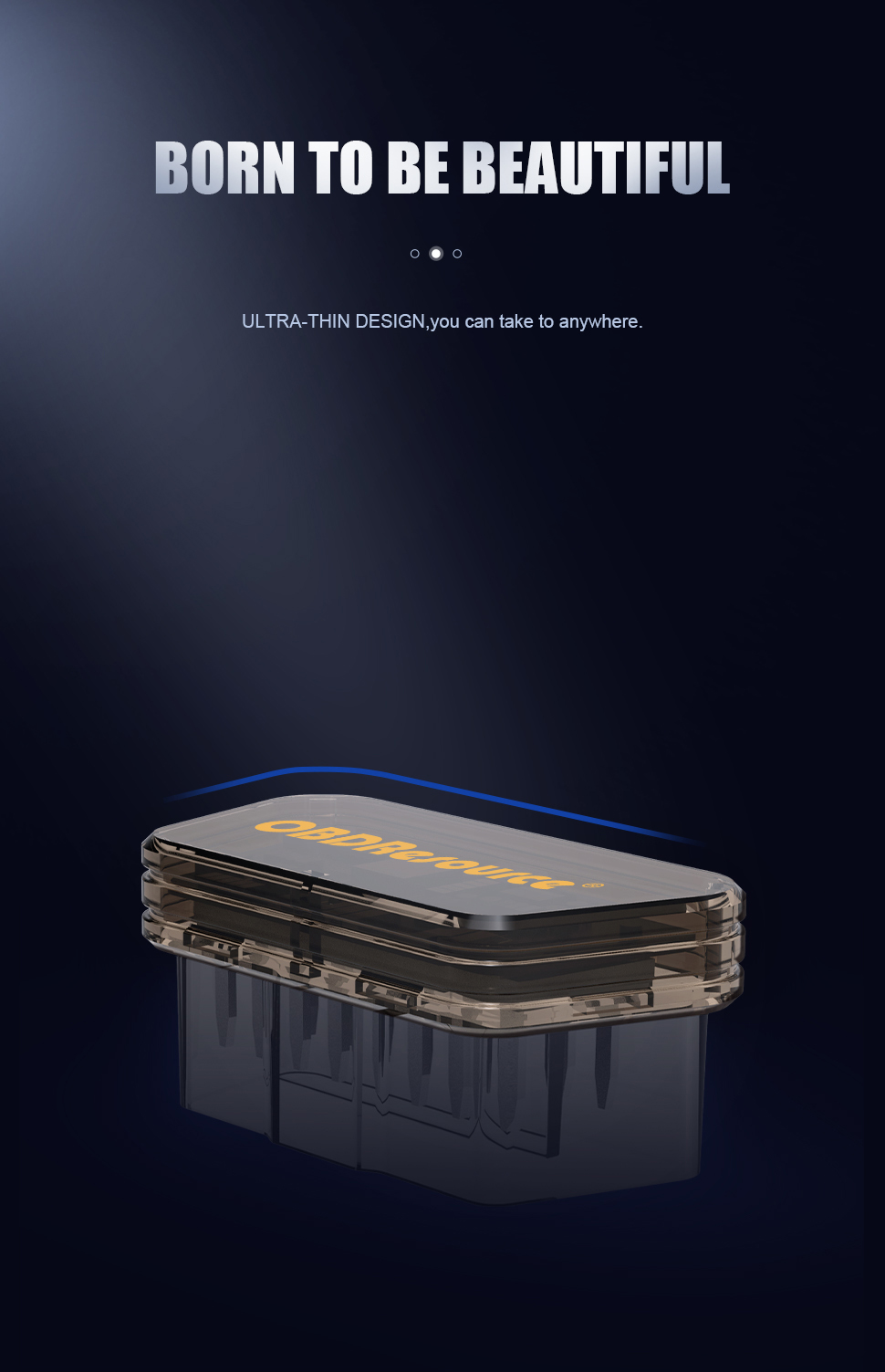

Compact plug-in body

A 44.9×22.8×19.8 mm body plugs into the 16-pin OBD port and uses vehicle power. Remove after the procedure; it is not a long-term monitor or data logger.

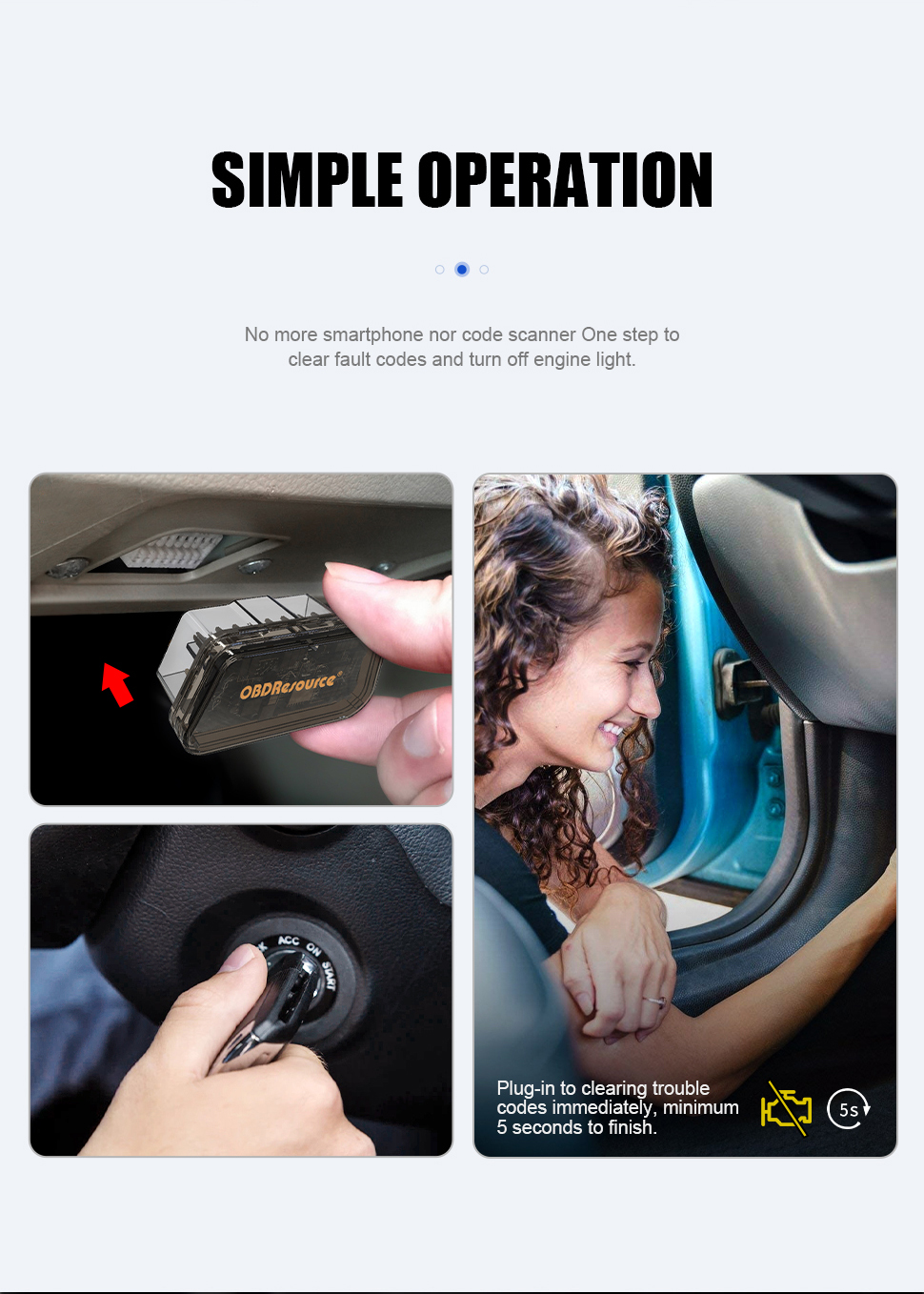

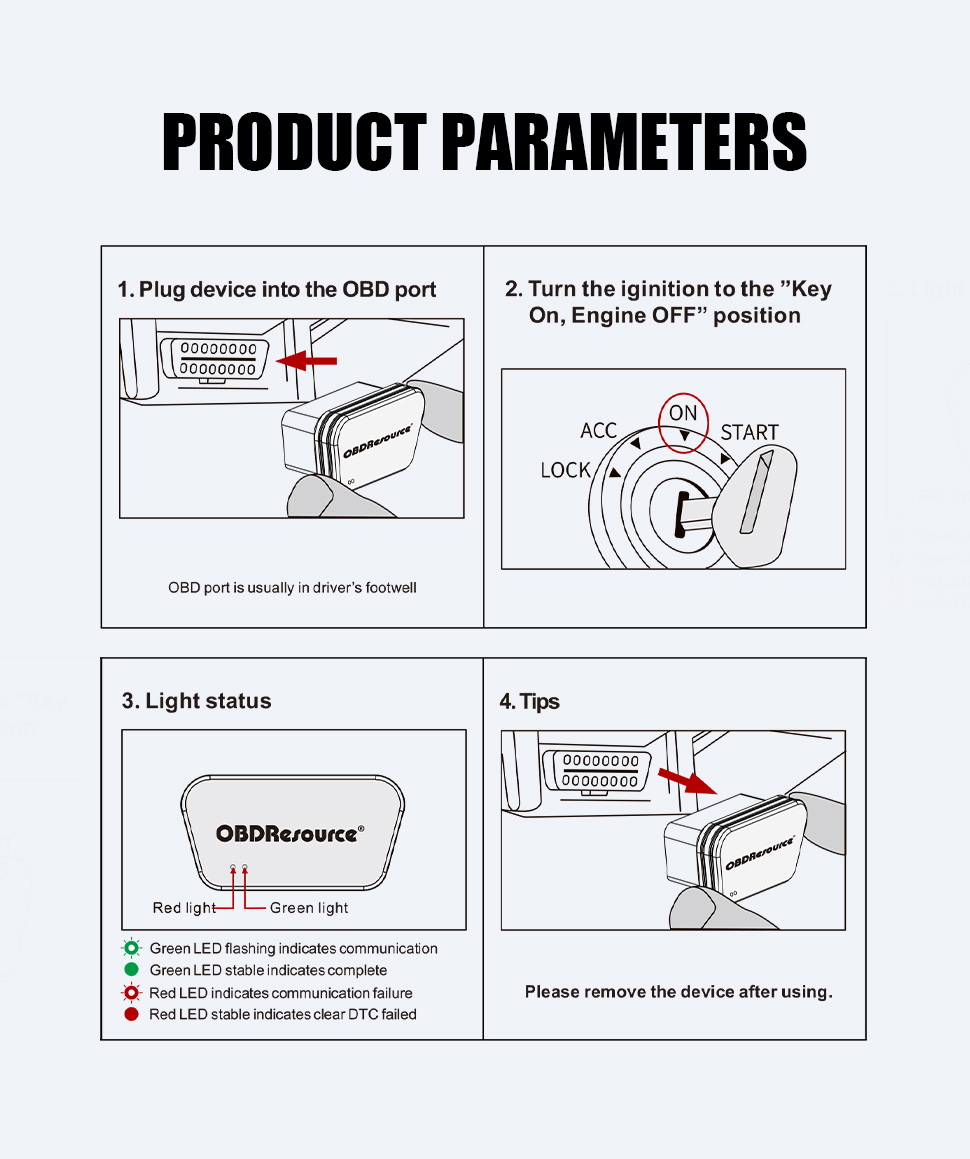

Suggested workflow

  1. Read and save first — Save DTCs, freeze frames and related information with a code-reading tool and confirm clearing is appropriate for the repair.

  2. Confirm support and connect — Verify 12 V and OBDII/EOBD compatibility, connect as instructed and set ignition to the specified ON state.

  3. Observe LEDs and remove — Wait for feedback; if it fails, check contact and compatibility. Remove after completion and recheck faults and I/M with a diagnostic tool.

Frequently asked questions

Does clearing repair a fault or guarantee an inspection pass?

No. A fault can return if its cause remains, and clearing may reset I/M monitors. Repair the actual cause and verify using the vehicle procedure.

Does it show the actual codes and live data?

No. LEDs show operation status, not diagnostic content. Use an appropriate scanner for DTCs, freeze frames, graphs or diagnostic evidence.

Why might codes remain?

Protocol support, ECU state, code type, port contact or an unresolved fault may be involved. Distinguish communication failure from clearing failure using the red LED and verify with a scanner. Not every code is clearable.

Product design

P04 Lite Product design

Documentation and support

View product documentation and contact technical support

Key features

Standalone emissions-related code clearing on compatible 12 V OBD2 vehicles without phone operation. Dual LEDs show communication/results in a 44.9×22.8×19.8 mm body.

Applications

P04 Lite 12V OBD2 code eraser with standalone plug-in operation and dual status LEDs. View specifications, operating steps, diagnostic-record guidance and FAQ.

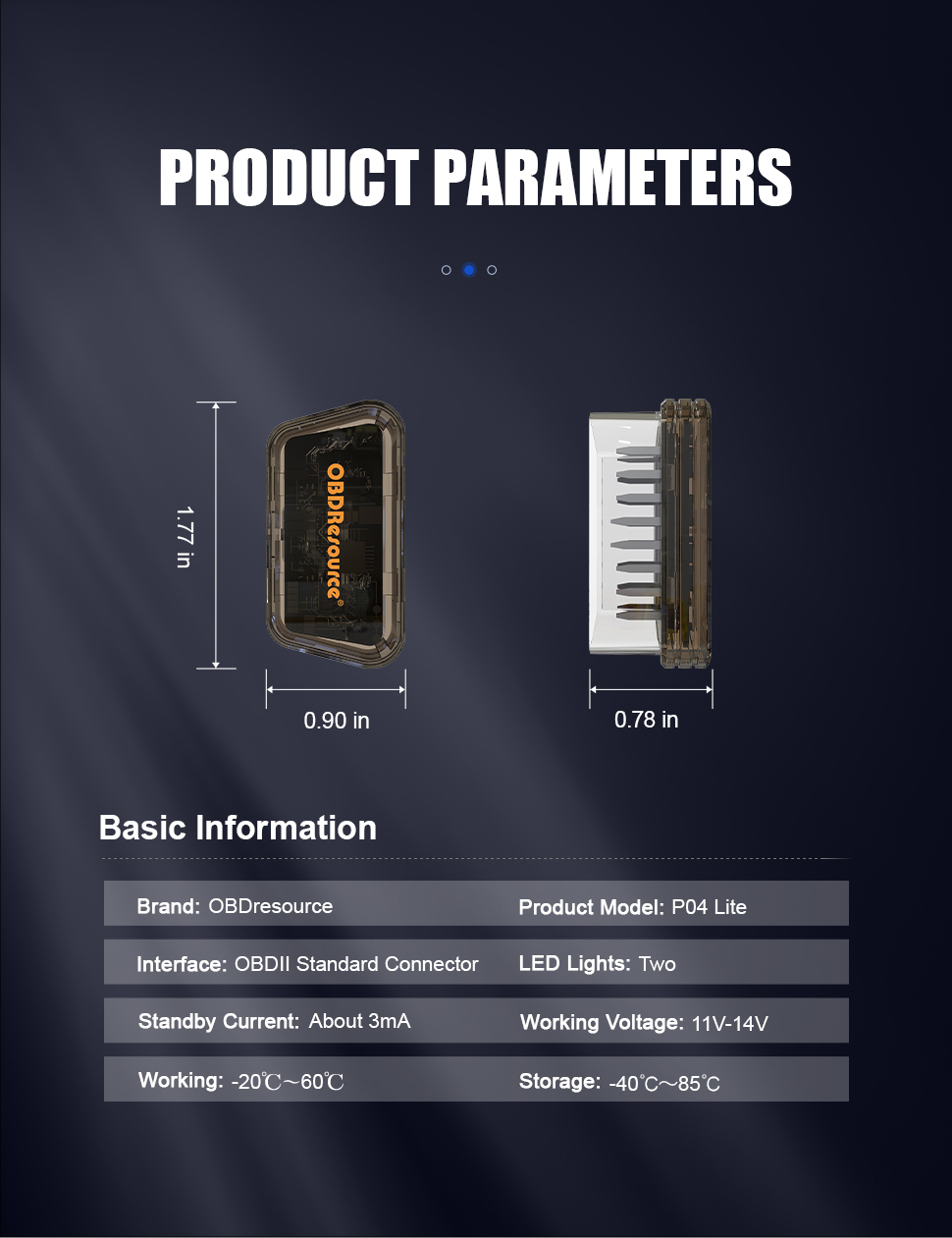

Technical specifications

ItemSpecification or function
ModelP04 Lite
PurposeAutomatic standard OBD2 emissions-related engine code clearing
Nominal system12 V
Listed operating voltage11–14 V
Connector and power16-pin OBD port, vehicle-powered
Phone requirementNo phone app required
Indicators2 LEDs: red and green
Green LEDFlashing: communication; steady: complete
Red LEDFlashing: communication failed; steady: clearing failed
Dimensions44.9 × 22.8 × 19.8 mm
Standby currentApprox. 3 mA
Operating temperature−20–60°C
Storage temperature−40–85°C

Save diagnostic information first; this tool does not display codes. Clearing does not repair faults and may reset I/M. Follow the model instructions for compatibility and use.
