Circuit Tester

CP402.4-inch Circuit, Injector & Battery Diagnostic Tool

Combines circuit measurements, waveforms, injector capture/simulation, component activation and 12/24 V battery analysis. 2.4-inch color screen, 8–32 V input, 0–80 V testing and 8 A limit.

Product overview

The CP40 combines voltage measurement, polarity/ground checks, continuity and component activation in a handheld probe for use with vehicle wiring diagrams. Measurement and active power application are different operations: identify the circuit and component limits before selecting a function. Check supply, measurement range and output-current limits separately.

Key capabilities

Voltage, polarity and wiring checks

Check DC voltage and polarity, then use the auxiliary ground lead for continuity/ground checks and to help locate trailer-light, connector and short-circuit issues. Isolate circuits for continuity as instructed; continuity alone does not prove correct behavior under load.

Activate within rated conditions

Apply positive supply or ground to permitted components as instructed, up to 8 A. The 0–80 V measurement range is not an activation-output voltage rating; output depends on the connected supply and circuit conditions.

Working reach and protection

The 10 m extension increases reach for circuit checks and must be removed for battery analysis. Lighting and current/overload/temperature safeguards assist use; investigate trips before resuming as instructed.

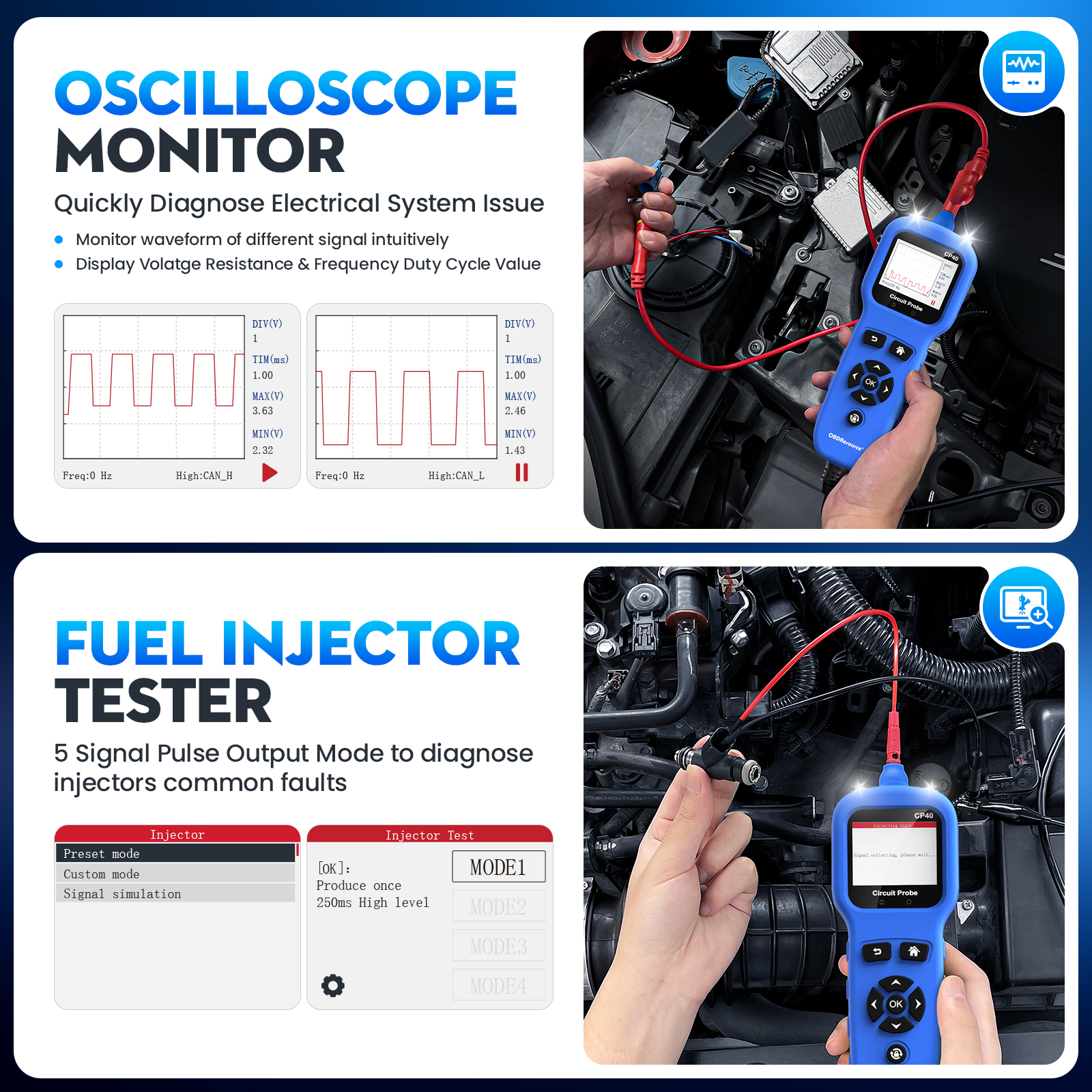

Injector signal capture and pulsing

Compatible injectors support four presets, custom frequency/pulse width, in-vehicle signal capture and off-vehicle simulation. Follow wiring and component requirements, optionally with professional cleaning equipment; automatic cleaning, flow metering and universal support are not implied.

12/24 V battery analysis

The battery module provides CCA, SOC, SOH, resistance and voltage plus starting, charging, load and waveform checks. Do not connect the 10 m extension during battery tests. Use nameplate ratings; estimates are not actual Ah capacity or remaining years.

Suggested workflow

  1. Identify the circuit and tool limits — Check the wiring diagram, component rating, supply range and intended test; inspect leads and perform the prescribed self-test.

  2. Measure before deciding on activation — Check voltage, polarity and connections first. Activate only components approved for external power and do not energize unidentified circuits.

  3. Use direct connection for battery checks — For battery analysis, switch off the engine, connect as instructed without the 10 m extension and select 12/24 V, type and rating.

  4. Record and verify — Interpret readings and load behavior with the diagram, investigate abnormalities and restore/check connections after testing.

Frequently asked questions

Why do input, measurement and activation limits differ?

Input powers the tool, the measurement range specifies readable voltage, and activation limits govern output/load. They are not interchangeable; measurement limits do not define output voltage.

Can the activation switch be used on any terminal?

No. Verify terminal function, isolation and allowable voltage/current using service information. Activate only suitable components and do not activate during continuity tests.

Does overload protection prevent all damage from misuse?

No. Incorrect voltage, terminal selection or sensitive circuits may still be damaged. Protection assists correct operation; wiring and rated limits remain essential.

Why must the 10 m extension be removed for battery testing?

Additional lead and connection resistance affects resistance-based analysis. The manual requires battery testing without this extension and clean, secure terminal contact.

Product design

CP40 Product design

Documentation and support

View product documentation and contact technical support

Key features

Combines circuit measurements, waveforms, injector capture/simulation, component activation and 12/24 V battery analysis. 2.4-inch color screen, 8–32 V input, 0–80 V testing and 8 A limit.

Applications

CP40 2.4-inch circuit tester with 0–80 V measurements, waveforms, injector capture/pulsing and 12/24 V battery SOH/SOC, resistance and starting/charging checks. Specs and FAQ.

Technical specifications

ItemSpecification or function
ModelCP40
Input supply8–32 V
DC test voltage0–80 V
Operating current<90 mA
Activation current limit8 A
Extension lead10 m; do not connect during battery tests
Display2.4-inch TFT color, 320×240
Measurement/wiring functionsVoltage, polarity, continuity, ground and short-circuit assistance
Component activationPositive supply or ground per instructions, permitted components only
ProtectionReverse-connection and overload safeguards; conditions per manual
Lighting and alertsLED lighting and buzzer alerts
Voltage resolution/input impedance0.1 V DC / 4.7 MΩ
Multimeter functionsVoltage, resistance, diode, continuity, polarity, frequency
Frequency test5 Hz–20 kHz
Waveform capabilityMaximum 1 MS/s sampling, 20 kHz monitoring; CAN polarity, not message decoding
Injector functions4 preset/custom pulses plus signal capture/simulation, per compatibility
Signal simulationSensor voltage simulation up to 5 V, separate from component activation
Battery module application12/24 V flooded, AGM flat/spiral, GEL and EFB lead-acid batteries
Battery checksCCA, SOC, SOH, resistance, voltage; waveform, cranking, charging and load checks
Display controlsHold; 180° rotation in multimeter interface
Languages/updates11 languages per menu; Type-C updates with official PC tool
DimensionsIllustrated approx. 217 × 75 × 45 mm
Operating temperature−20–50°C per current manual
Storage temperature−40–65°C per current manual

Use the battery module for the stated 12/24 V lead-acid types without the 10 m extension. Supply, measurement, simulation and activation limits differ; follow the matching manual.
