EL50448 UltraSuper TPMS & RF/IR/IMMO Signal Tester

Combine compatible 315/433 MHz TPMS activation with RF band, IR and IMMO signal detection. LED/buzzer feedback and two-AAA-battery power; signal checks do not replace key programming or full…

Product overview

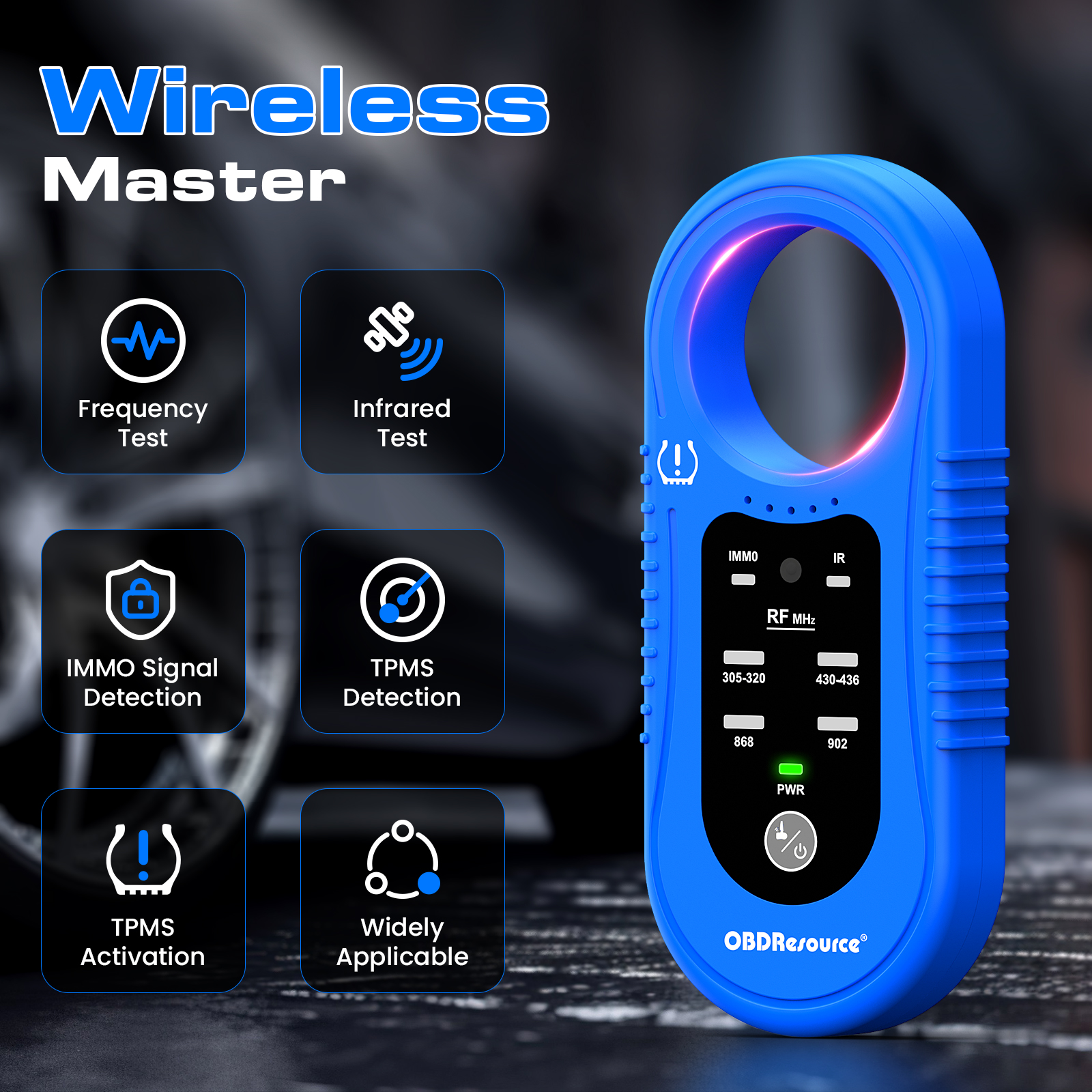

The OBDResource Super EL50448 Ultra combines TPMS activation with common signal checks in one handheld tool. It assists relearn on supported vehicles and uses LEDs and a buzzer to indicate detected RF, infrared or IMMO signals for tire service and initial remote-control signal checks.

Key capabilities and applications

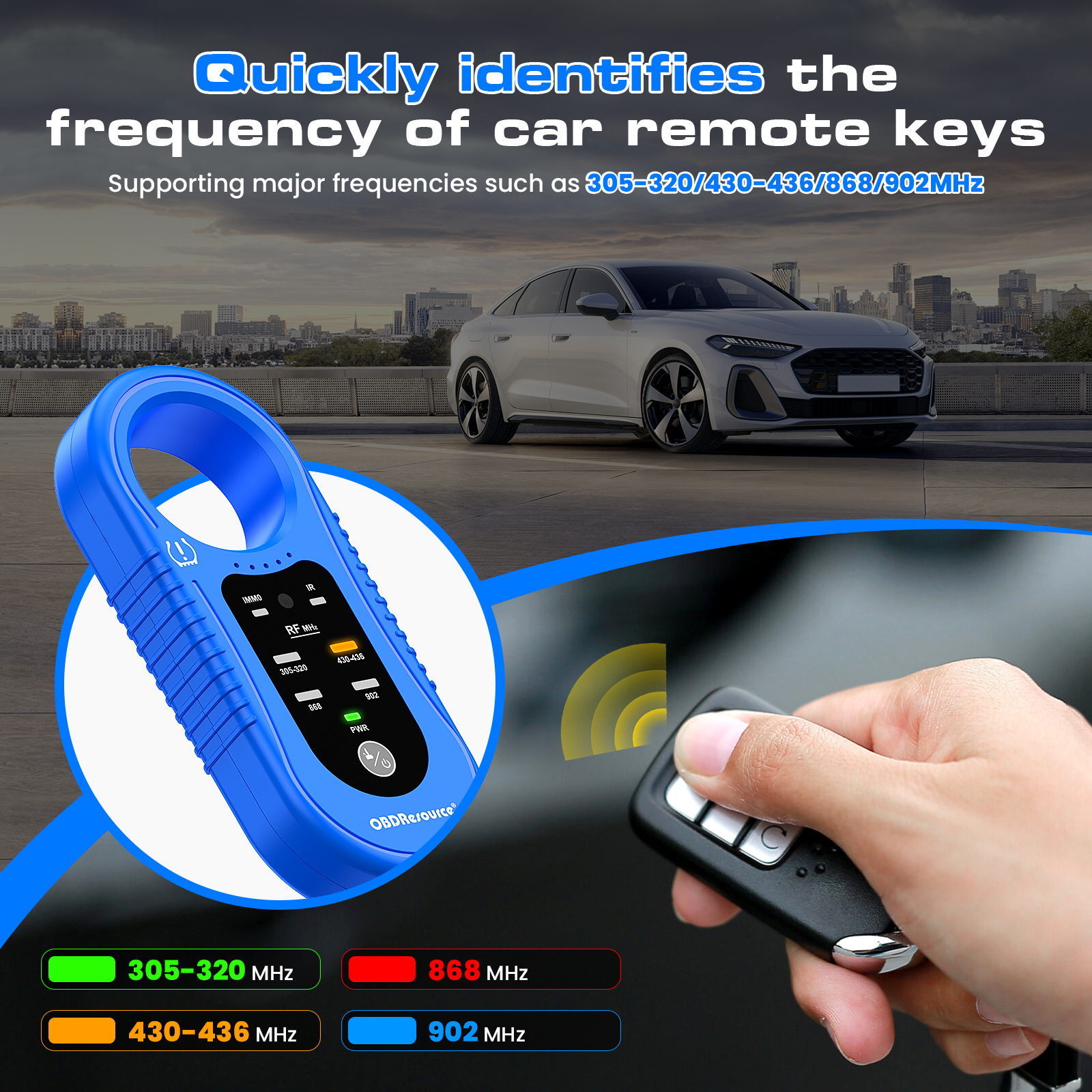

RF band detection

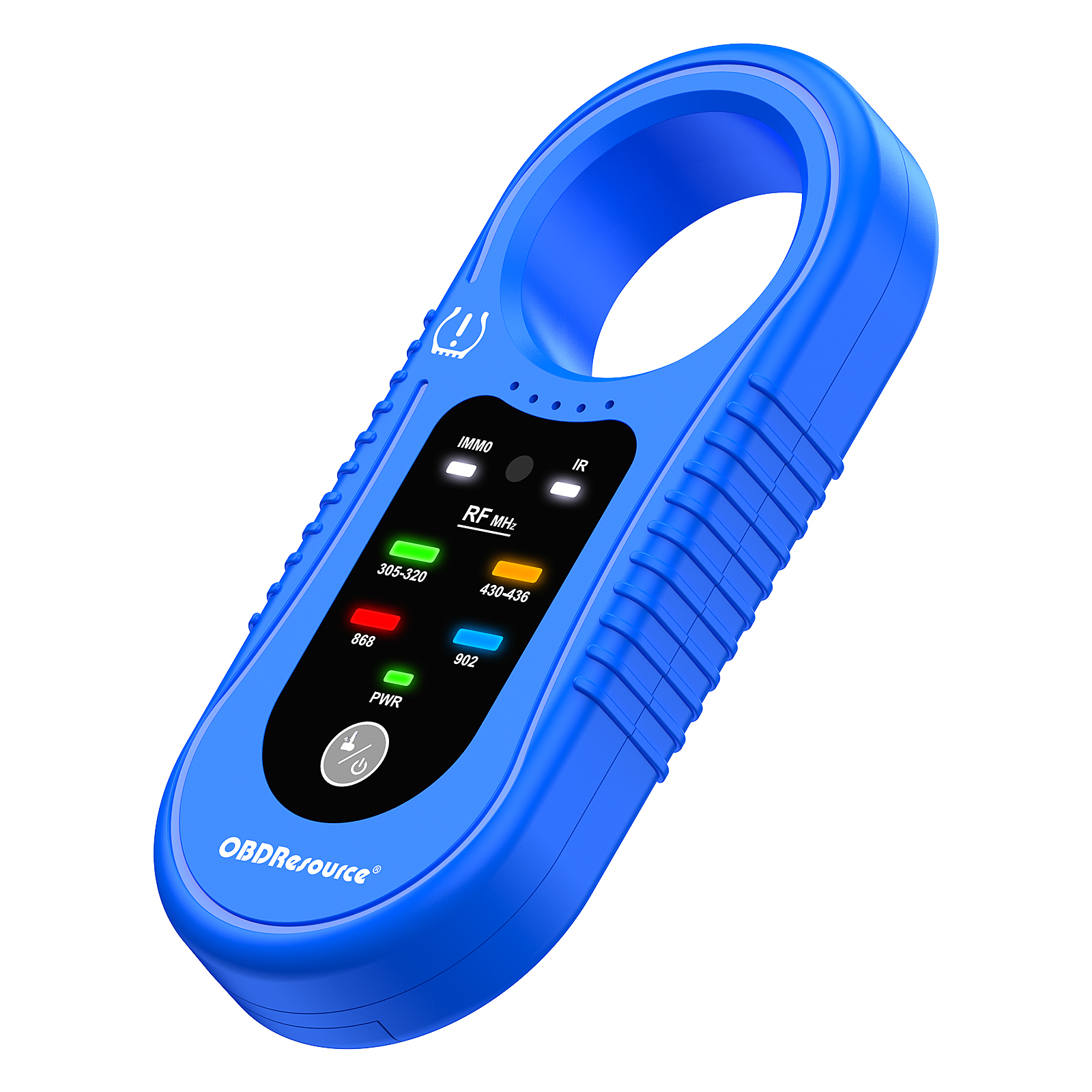

Detect signals in the 305–320, 430–436, 868 and 902 MHz bands, including common 315/433 MHz applications. LEDs identify the detected band; this is not spectrum analysis or signal-strength measurement.

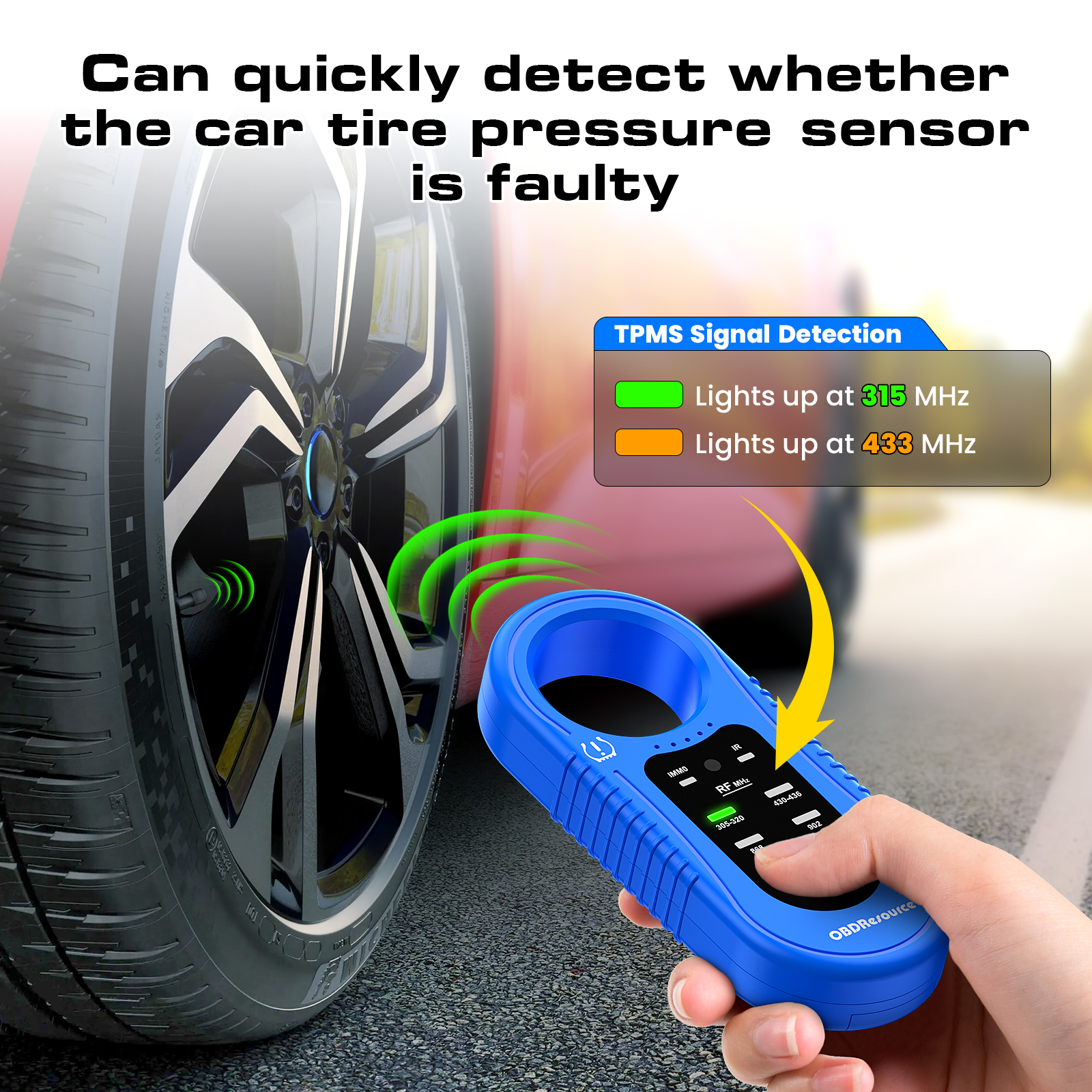

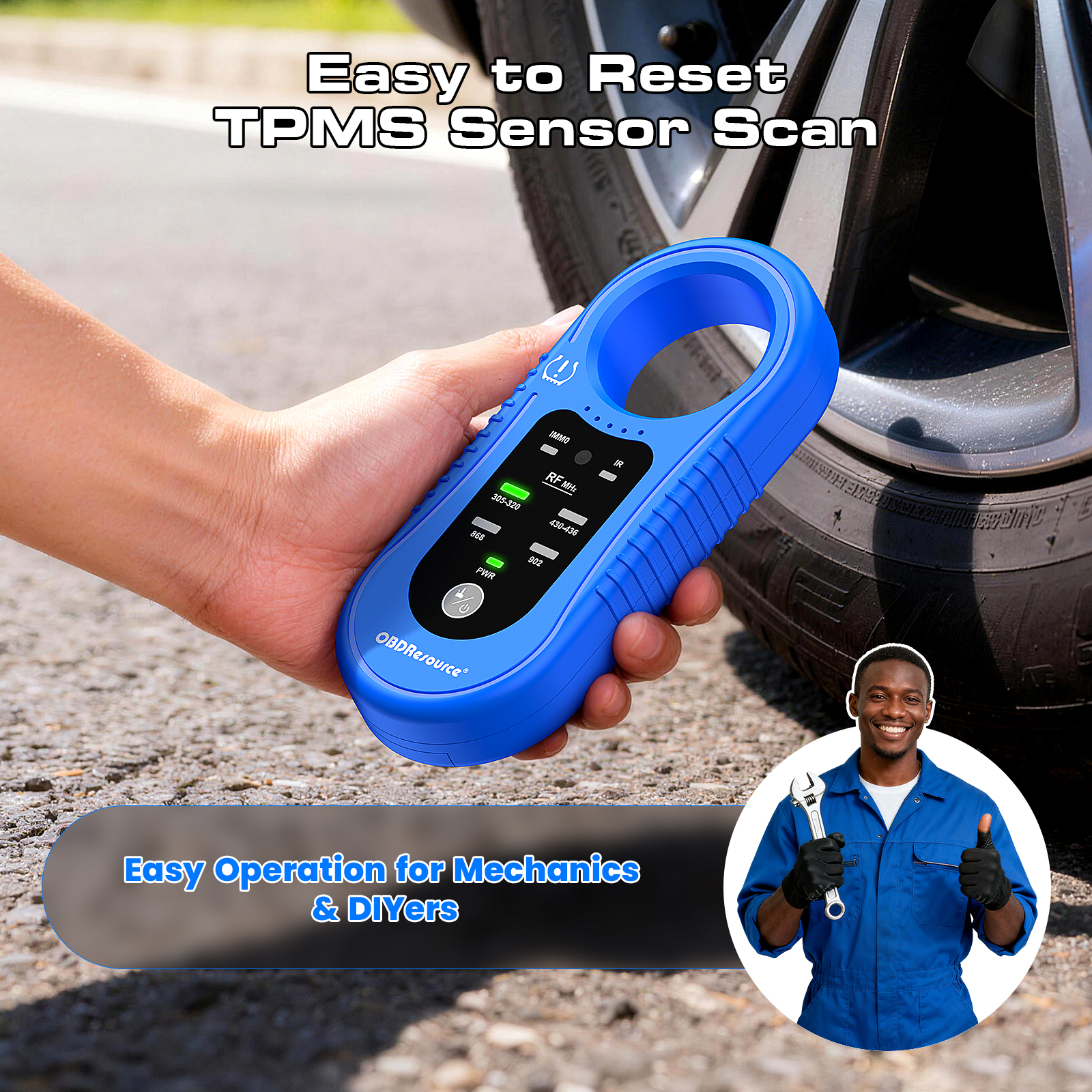

TPMS activation and response checks

Activate compatible 315/433 MHz sensors and follow the vehicle’s specified relearn process. A detected response alone does not establish pressure accuracy, battery health or complete sensor functionality.

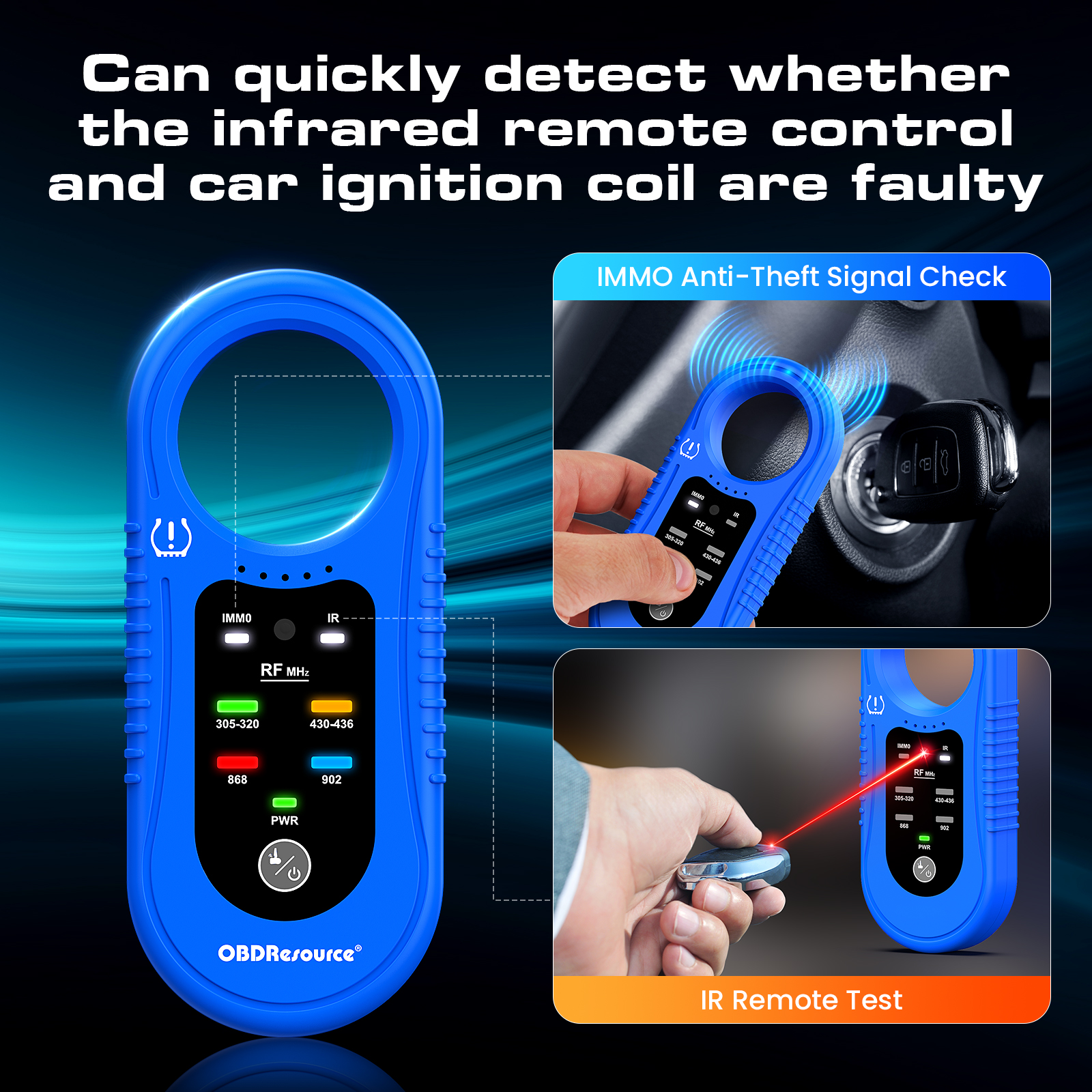

IR and IMMO signal checks

Aim an infrared transmitter at the IR receiver and position IMMO checks at the instructed sensing area. It detects signal presence; it does not perform immobilizer matching, key registration or immobilizer fault-code diagnosis.

Suggested service workflow

  1. Confirm the application and tire condition — Verify vehicle and sensor specifications, repair leaks or hardware faults and set the specified tire pressure first.

  2. Prepare the vehicle-specific relearn — Follow the vehicle service instructions to prepare relearn. On a tool with vehicle menus, select the correct make, model, year and market.

  3. Activate and confirm each wheel — Use the specified wheel order and antenna position, waiting for the required vehicle or tool confirmation before proceeding.

  4. Complete and verify — After relearn, verify wheel positions and warning status. If unsuccessful, check tool battery, vehicle mode, sensor frequency, protocol and condition.

Compatibility depends on make, model, year, market and sensor protocol. Follow the instructions for the specific tool and vehicle.

Frequently asked questions

Does a detected signal prove the device is fully working?

No. Detection confirms a received signal, not correct coding, vehicle pairing, sensor accuracy or battery health. Combine it with vehicle response and other checks.

Can it register keys or disable an immobilizer?

No. IMMO is a signal-presence check. It does not program keys, match immobilizers, read security codes or disable theft protection.

Will relearn always clear the TPMS warning?

No. First set tire pressure to the vehicle placard requirement and address leaks, failed sensors or incompatible frequency/protocols, then complete the prescribed relearn and verification.

What information is needed to confirm compatibility?

Provide the vehicle make, model, year, market, sensor OE number and required operation. Different years or markets within one brand may use different sensors and relearn methods.

Product design

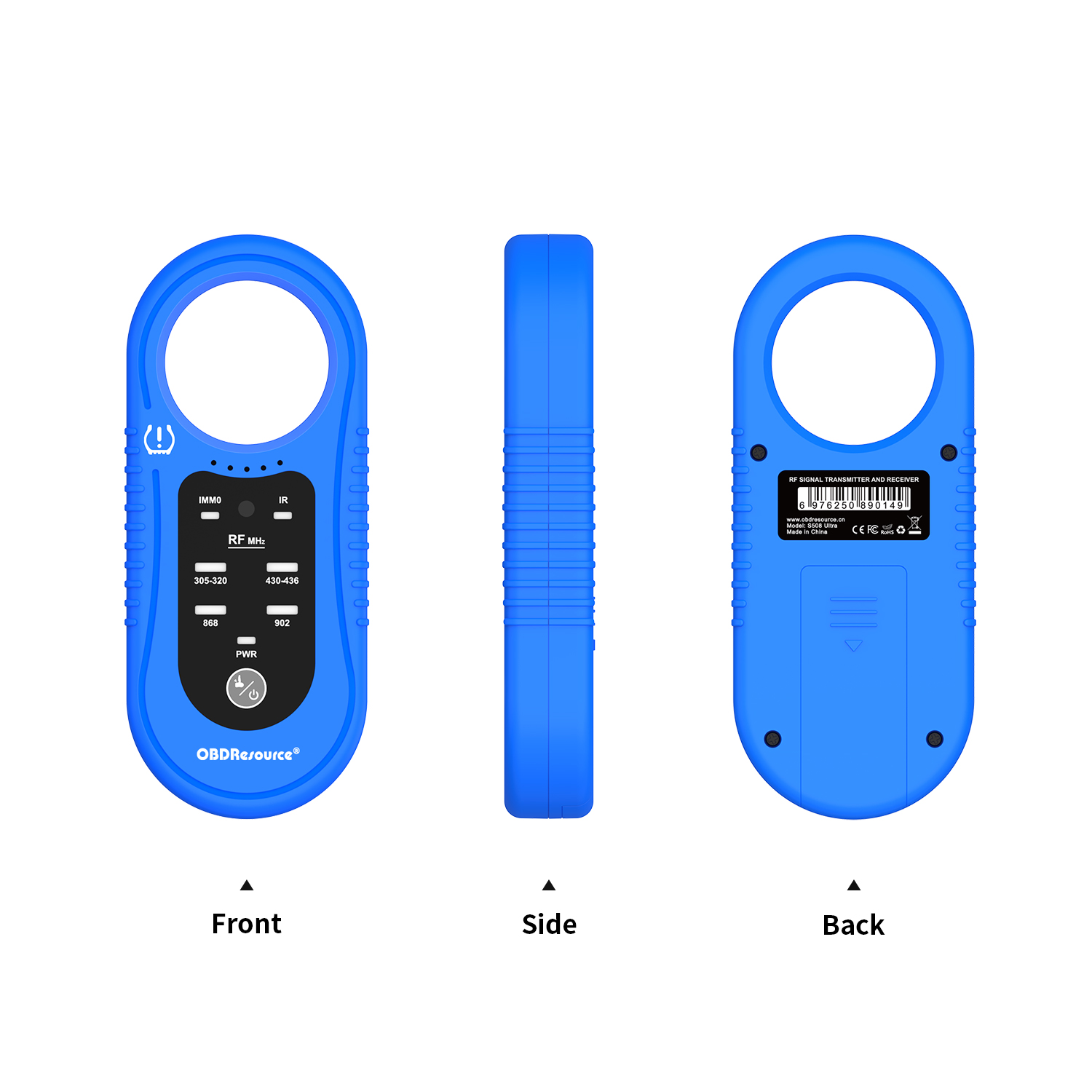

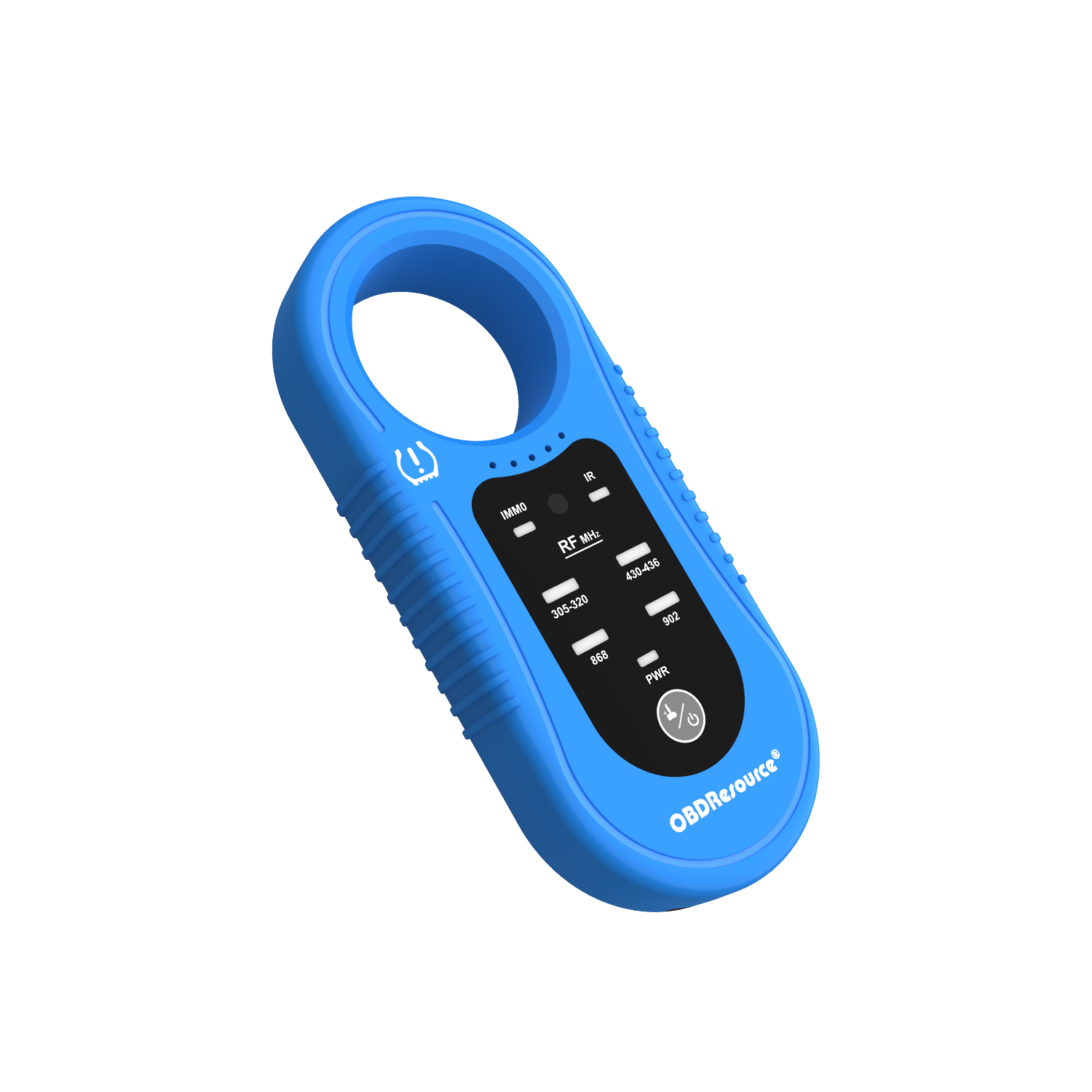

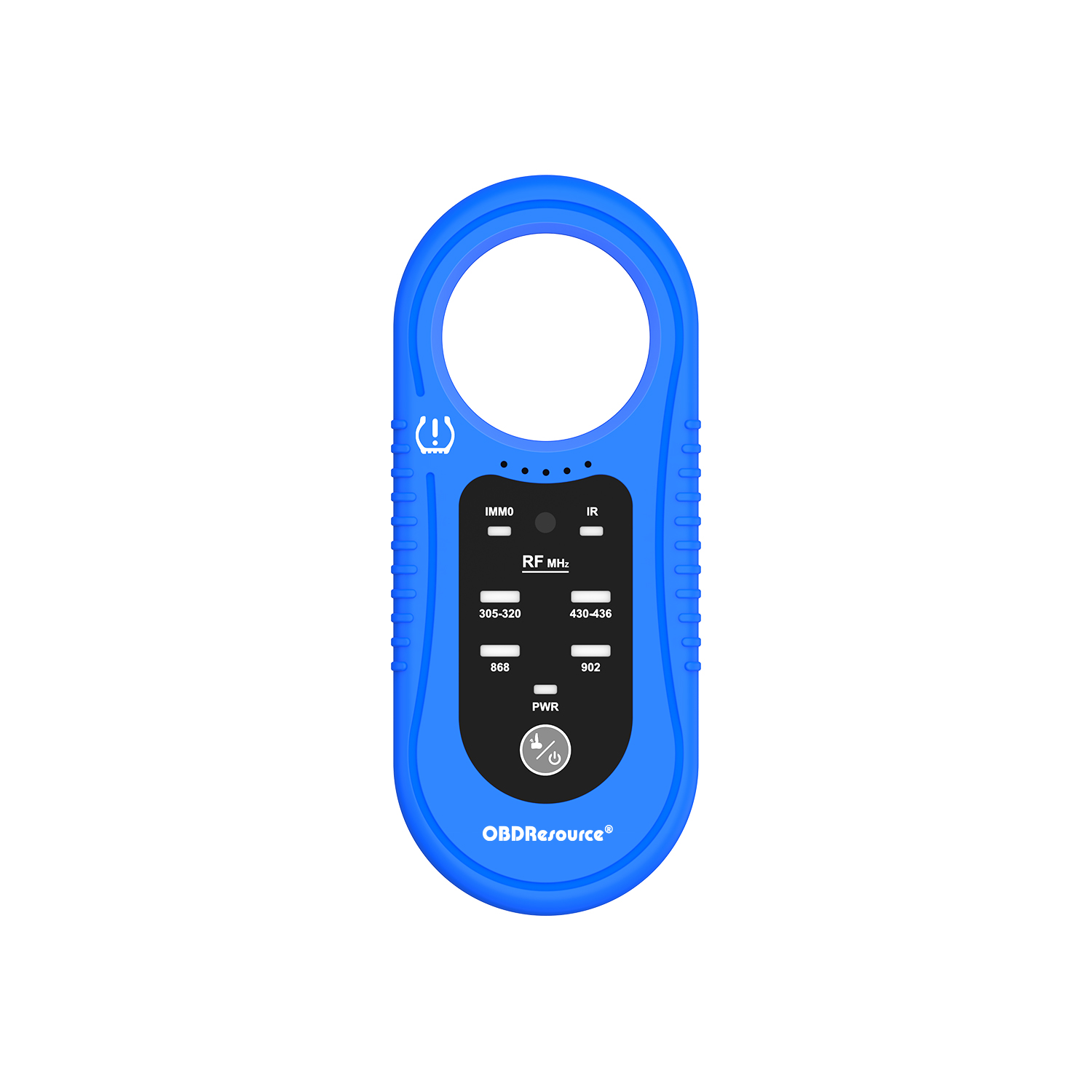

Super EL50448 Ultra Product design

Related products and support

Super EL50448 2-in-1 TPMS Relearn Tool for GM & Ford   ·   TPS30 TPMS Diagnostic & Programming Kit with 4 Sensors

Product documentation and technical support

Key features

Combine compatible 315/433 MHz TPMS activation with RF band, IR and IMMO signal detection. LED/buzzer feedback and two-AAA-battery power; signal checks do not replace key programming or full vehicle diagnosis.

Applications

Super EL50448 Ultra combines TPMS activation with RF, IR and IMMO signal checks. Detect 305–320, 430–436, 868 and 902 MHz bands with LED and buzzer feedback.

Technical specifications

ItemSpecification or function
ModelSuper EL50448 Ultra
Tool typeTPMS activation and RF/IR/IMMO signal detection tool
RF detection bands305–320 MHz / 430–436 MHz / 868 MHz / 902 MHz
TPMS activationCompatible 315 MHz / 433 MHz sensors
IR and immobilizer signalsIR detection / IMMO signal-presence checks
Power supplyTwo AAA batteries
Input voltage3 V DC
Standby current13 mA
Dimensions150.8 × 63.5 × 23.5 mm
Operating temperature−40°C to 70°C
Storage temperature0°C to 60°C
Automatic sleepTurns off after approximately 180 seconds without operation or received signal

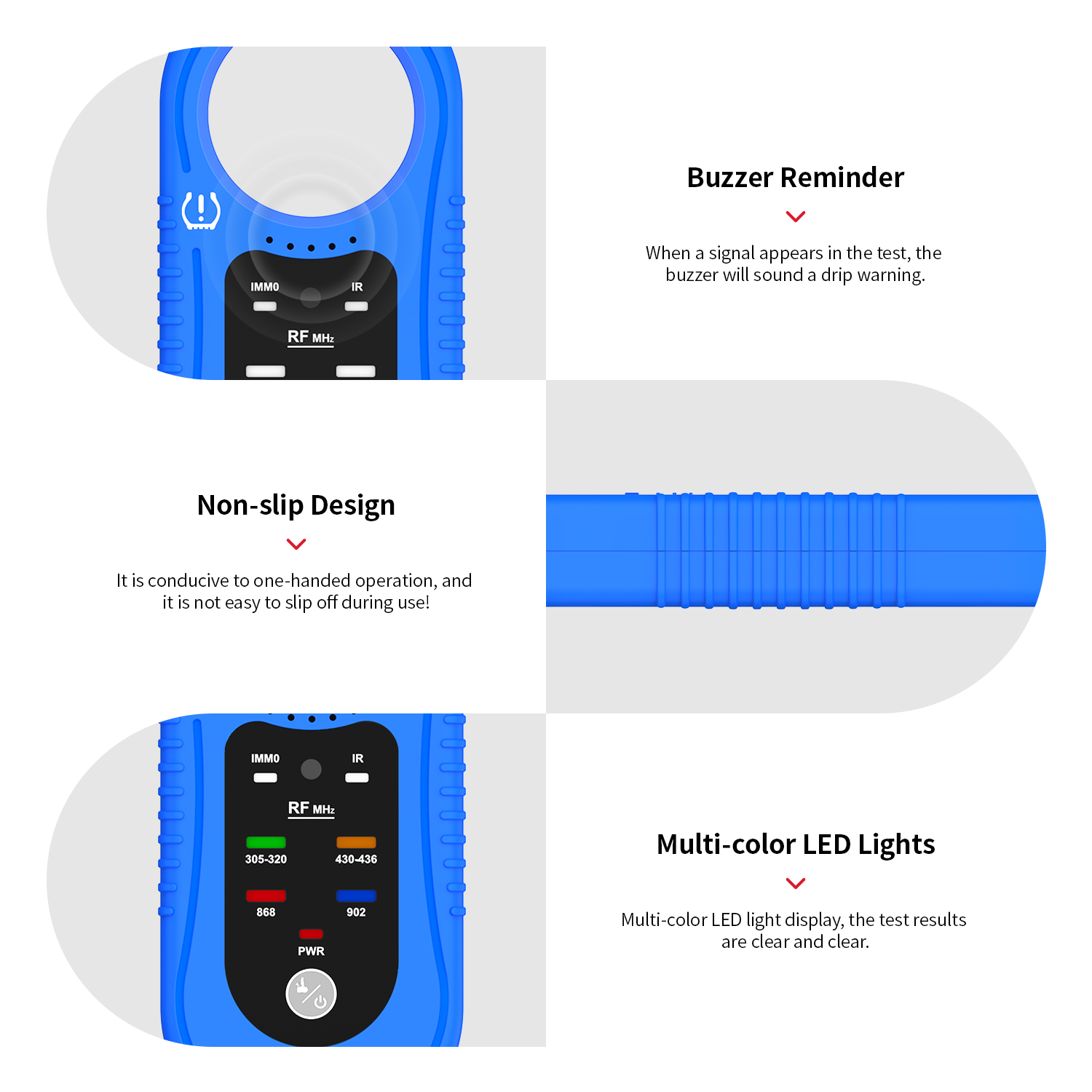

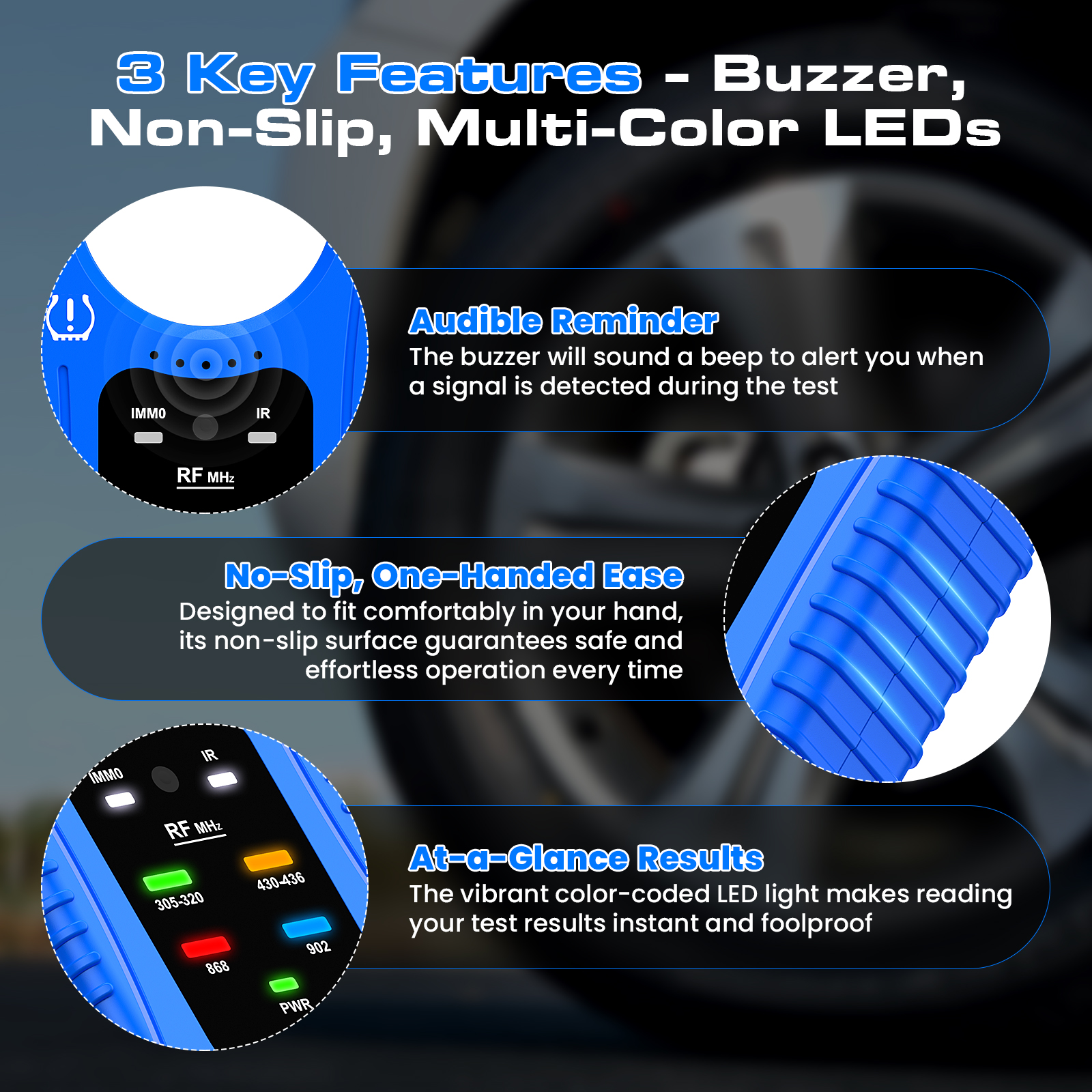

Display and feedbackBand LEDs, buzzer and PWR low-battery indication
Sensor programmingDoes not create, clone or program replacement sensor IDs
Key registration / immobilizer matchingNot supported

Compatibility depends on make, model, year, market and sensor protocol. Follow the instructions for the specific tool and vehicle.
